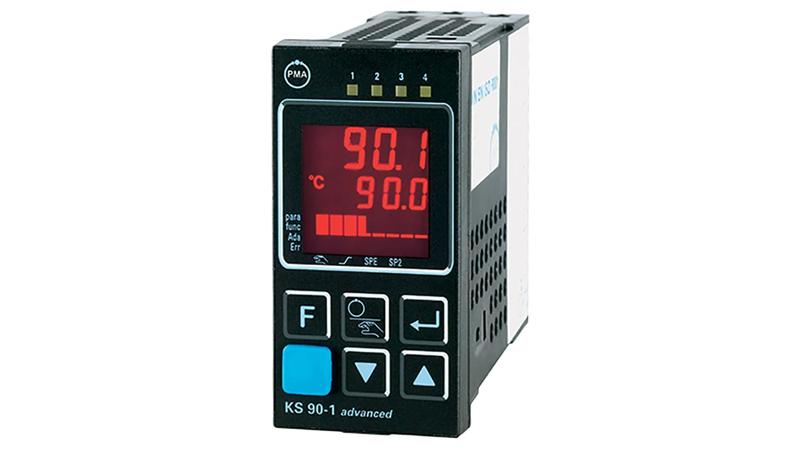

KS90-102-0100D-000 P.M.A KS90 PID Temperature Controller, 48 x 96mm, 2 Output, 90 → 250 V ac Supply Voltage

PMA KS 90-1 Temperature Controller_x000D_ The KS 90-1 process controller is suitable for universal, precise, and cost-effective control. The instrument provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control._x000D_ The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement, as an external set-point inputter for position feedback measurement of motorised stepping controllers._x000D_ The optional 3rd input is a universal input that can be used for several functions, e.g. temperature dependent setpoint correction or differential control. The standard KS 90-1 is suitable for oxygen control using heated and unheated O2 sensors._x000D_ The KS 90-1 is particularly suited to the following applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers._x000D_ • BluePort®_x000D_ • Front interface and BlueControl software_x000D_ • Maintenance manager and error list_x000D_ • Two universal inputs_x000D_ • Day & Night display shows plain text and bargraphs_x000D_ • Manual gain scheduling_x000D_ • Self-Tuning to the setpoint without oscillation_x000D_ • Valve controller with position feedback and DAC monitoring_x000D_ • 3-point controller for water, fan and oil cooling_x000D_ • Type tested to EN 14597 (replaces DIN 3440) and cULus_x000D_ • High-impedance mV input for O2 sensors_x000D_ PMA Temperature Controllers
