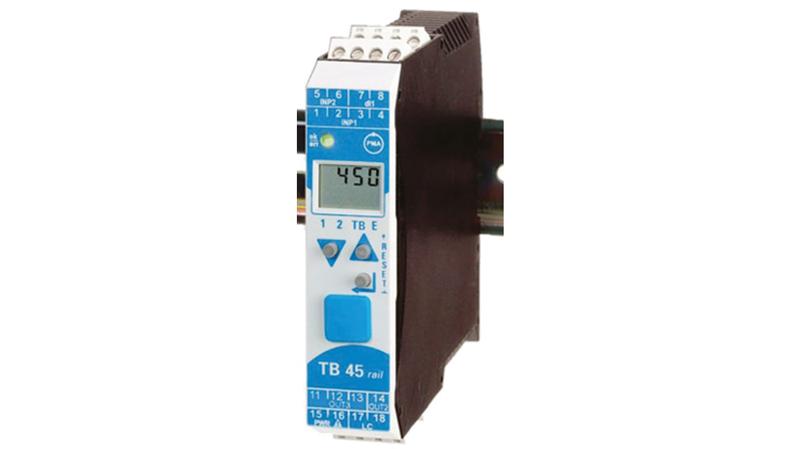

TB45-110-00000-D00 P.M.A TB 45 PID Temperature Controller, 99 x 22.5mm, 2 Output Relay, 90 → 260 V ac Supply Voltage ON/OFF

PMA TB 45 Temperature Limiter_x000D_ The TB 45 temperature limiter is intended for precise, cost-effective signal monitoring & limiting tasks._x000D_ The TB 45 can be used for heating and refrigeration processes. It is suitable for all thermocouple types and resistance type sensors. It is particularly designed for use in: all applications where an over or under temperature fault condition could present fire hazard or other hazard, heating system in buildings to DIN EN 12828, large hot-water boilers to DIN EN 12953-6, thermal transfer plants with organic heat transfer media to DIN 4754, oil-fired installations to DIN 4755 and limit signalling function for any type of input signal._x000D_ • Compact solution for distributed automation_x000D_ • Display and operating functions_x000D_ • 2 universal inputs for TC, RTD, R, U, I, O2_x000D_ • Universal output, relays / optocoupler outputs_x000D_ • Front interface and BlueControl®-software_x000D_ • RS 485 interface_x000D_ • Compact design, only 22.5 mm (0.87”) wide - saves space in the control cabinet_x000D_ • Clips onto top-hat DIN rail_x000D_ • Plug-in screw terminals or spring-clamp connectors - simple connection_x000D_ • Dual-line LC display with additional display elements - process values always in view_x000D_ • Convenient 3-key operation_x000D_ • Direct communication between mounted controllers, fieldbus connections via bus coupler - simple integration into PLC/PC_x000D_ • Universal input- also reduces stock keeping_x000D_ • Second analogue input as universal input (optional)_x000D_ • Universal high-resolution output as combined voltage/current output_x000D_ • Two output relays or optocoupler outputs_x000D_ • Fast 100 ms response - also suitable for fast signals_x000D_ Standards_x000D_ EN 14597 certified (replaces DIN 3440)_x000D_ PMA Temperature Controllers
