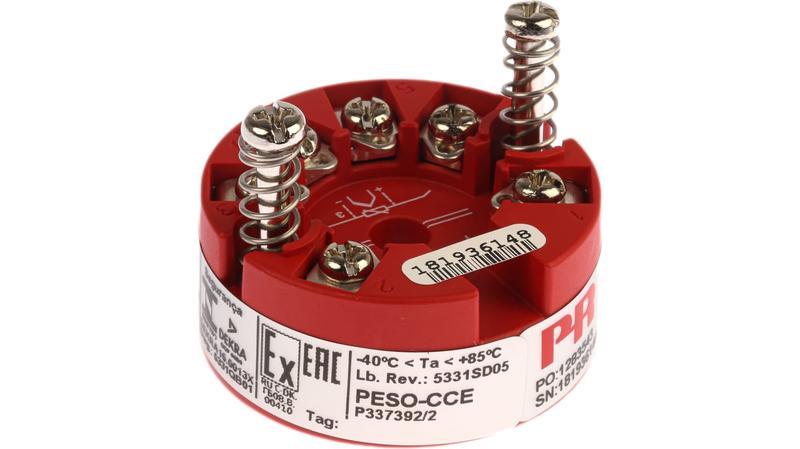

5331D3B PR Electronics 5300 Temperature Transmitter Linear Resistance, RTD, Thermocouple, Voltage Input, 7.2 → 30 V dc

5300 Series - In-Head Temperature Transmitter_x000D_ PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes._x000D_ Features and Benefits_x000D_ • For DIN form B sensor head mounting_x000D_ • Sensor drift detection maintains measuring point reliability_x000D_ • Flexible input capability, with choice of output modes_x000D_ • Superior accuracy ensures true, reliable measurements_x000D_ • Fast response time easily supports safety and cost-critical applications_x000D_ • High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz_x000D_ • Continuous check of vital stored data for safety reasons_x000D_ • Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter_x000D_ • Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions_x000D_ Sensor Inputs_x000D_ The PR 5331 programmable transmitter provides unrivalled input versatility. Virtually any thermocouple or 2, 3 & 4 Wire RTD, plus linear resistance and bipolar mV signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure.
