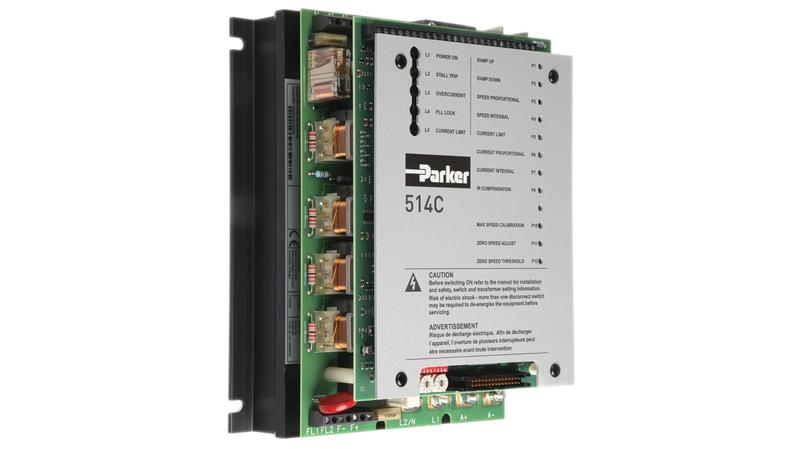

514C-32-00-00-00 Parker DC Motor Controller, 110 → 500 V, 1 Phase, 32 A, 360 V dc

514C Range (Regenerative) Speed Controllers_x000D_ The 514C range of isolated dc motor speed controllers provide fully regenerative (four quadrant) control of dc shunt and permanent magnet motors. They are particularly suitable for overhauling load applications or where accurately controlled braking is required._x000D_ Fully regenerative, four-quadrant motor control_x000D_ Internal logic control of power supply ac contactor_x000D_ Ramped speed input, auxiliary and inverted auxiliary inputs_x000D_ Features of 512C and 514C Range Speed Controllers_x000D_ Jumper-selectable single phase input voltage 110//120 or 220//240 or 380/415V ±10%_x000D_ Linear current feedback allowing accurate torque_x000D_ Zero speed or zero set point relay driver output - 24Vdc_x000D_ Total setpoint output_x000D_ Stall detection and trip_x000D_ Field bridge suitable for UK or continental voltages_x000D_ Overload capacity 150% of nominal current for 60s_x000D_ Adjustable maximum current level_x000D_ Adjustable maximum and minimum speed_x000D_ Adjustable I.R. compensation (for armature voltage feedback speed control)_x000D_ Adjustable speed stability_x000D_ Independent control of speed ramp, both up and down from 0-40s_x000D_ Indication of mains supply on, stall trip and overcurrent trip_x000D_ Switch selectable current calibration_x000D_ Switch selectable Armature/Tacho generator feedback_x000D_ Buffered 0-10V output for a speed reference or meter_x000D_ Buffered 0-7.5V output for a current meter (7.5V = 150%)_x000D_ Supplied with_x000D_ a comprehensive instruction manual.
