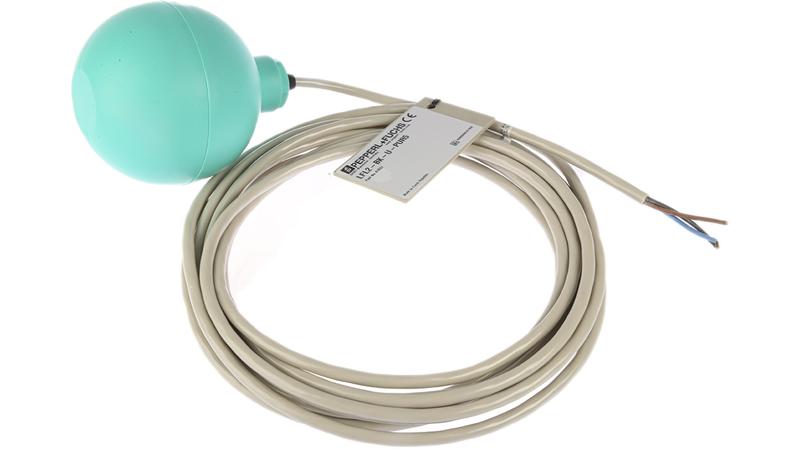

LFL2-BK-U-PUR5 Pepperl + Fuchs Horizontal Polypropylene Float Switch, Float, 5m Cable, Direct Load

Pepperl + Fuchs Float Switch_x000D_ The Pepperl + Fuchs microswitch (changeover contact) integrated with a PP float. It is activated in the event of deviations from the horizontal position. The switching ball in the float moves along an axis and activates the microswitch. This device can be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. It has a supply voltage of 250VAC/150VDC._x000D_ Features and Benefits_x000D_ It uses PUR cable material_x000D_ Switch element: Micro switch, mercury-free_x000D_ Limit value detection for fluids_x000D_ Sleeve design: Small diameter, mounting through G1 tap hole possible_x000D_ Ball design: High buoyancy_x000D_ Density sleeve design: ≥ 0.8 g/cm3 and ball design: ≥ 0.6 g/cm3_x000D_ Switching is started by the rocking motion of the sensor_x000D_ It is ideally suited to low density liquids_x000D_ The switch element is mercury free_x000D_ The float switch is small in diameter, allowing users to fit into tap holes as small as G1_x000D_ Density: ≥0.6g/cm3_x000D_ It has 5m cable length_x000D_ Certifications_x000D_ IP68 rated_x000D_ EN 50178_x000D_ EN 60529_x000D_ EN 60947-5-2_x000D_ EN 60947-5-2 A1_x000D_ CE certified
