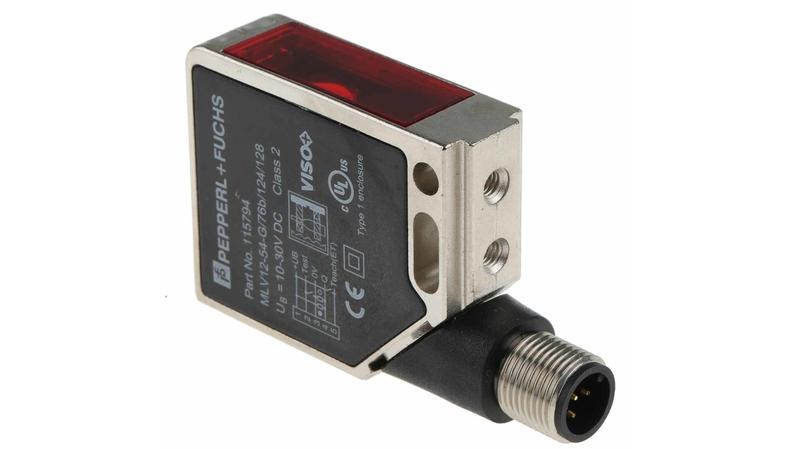

MLV12-54-G/76B/124/128 Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 4.2 m Detection Range

Retro-Reflective - LED_x000D_ Automatic adjustment of the switch points ’sensitivity’ through “TEACH IN”_x000D_ Sensitivity adjustment via membrane keypad or optical interface (e.g. freely selectable time steps)_x000D_ Multifunction input_x000D_ Control test input_x000D_ Multifunction Timer_x000D_ Failure warning, indication and output (static, dynamic)_x000D_ Voltage supply: 10 → 30Vdc_x000D_ M12, 5 pin connector_x000D_ Flashing power on LED in case of short-circuit_x000D_ Multiple device installation possible, no mutual interference_x000D_ Ultra bright LEDs for power on, stability control and switching state_x000D_ Powerful push-pull output - 200 mA for high resistance against noise_x000D_ Protection class II_x000D_ Not sensitive to ambient light, even with switched energy saving lamps_x000D_ Temperature range: -40 → +60°C_x000D_ Note_x000D_ Reflector not supplied. See reflector 285-065_x000D_
