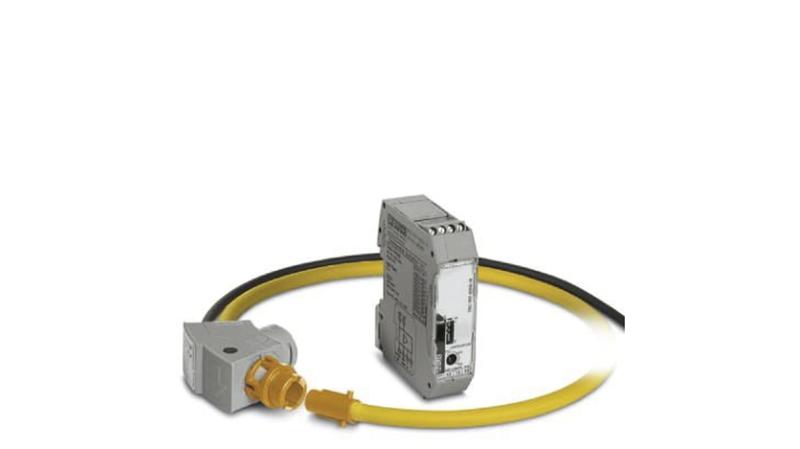

2904922 Phoenix Contact PACT RCP-D140 Series Rogowski Coil Current Transformer, 4000A Input, 0 → 1 A Output, 8.3mm Bore,

PACT RCP - Current Transformer_x000D_ The PACT RCP Current Transformer Kit for retrofitting for alternating currents up to 4000 Aac._x000D_ Current Transformer Kit_x000D_ Kit consisting of 2 components: 1 A measuring transducer and a Rogowski coil_x000D_ High system availability due to easy installation without removing system parts_x000D_ Transform alternating currents up to 4000 A using a single measuring system_x000D_ Space saving and handy: the current strength does not affect the size and weight of the coil_x000D_ Safe installation and operation: no dangerous open circuit voltages_x000D_ Harmonics and transients detected with phase accuracy with a large frequency range from 10 to 5000 Hz_x000D_ Rogowski coil secured on power rails and circular conductors, plus high measuring accuracy, thanks to rofessional holding device_x000D_ A holder for the coil is also available (stock-no.: 820-0447)_x000D_ Measuring Transducer_x000D_ Measuring transducer processes the mV signal of the upstream Rogowski coil_x000D_ 8 current measuring ranges (100 - 4000 Aac) which can be set via DIP switches_x000D_ Max. output current of 1 Aac_x000D_ Power supply 19.2 – 30 Vdc_x000D_ Power consumption 4W_x000D_ Rogowski Coil_x000D_ The Rogowski coil is used for AC current measurement for busbars and power lines_x000D_ The coil is available in different length and diameters:_x000D_ Length: 300 mm, diameter when installed: 95 mm, stock-no.: 820-0431_x000D_ Length: 450 mm, diameter when installed: 140 mm, stock-no.: 820-0435_x000D_ Length: 600 mm, diameter when installed: 190 mm, stock-no.: 820-0444_x000D_ Holder_x000D_ The optional holder ensures the Rogowski coil is securely seated on busbars with a thickness of 5-15 mm_x000D_ During installation, the coil housing is pushed onto the flange of the holding device and snaps in automatically_x000D_ Stock-no is 820-0447_x000D_ Phoenix Contact Flange-Mount Current Transformer, 0 to 1A Output - PACT RCP-4000A-1A-D140 - 2904922_x000D_ This current transformer from Phoenix Contact is a combined transducer and Rogowski coil device. It converts alternating current in your power lines to a safe level, so you can measure it._x000D_ The transducer can process a broad range of eight currents between 100A and 4000A, so you can use it in diverse applications. To adjust the input current, simply set it via the DIP (dual in-line plug) switch. An IP (ingress protection) rating of IP20, means the unit is touchproof and protected from contact damage by objects larger than 12mm in size._x000D_ The Rogowski coil is housed in durable PC (polycarbonate) material with high heat resistance, so you can use it in environments up to +80°C. The flange mount design lets you easily attach it to an electrical system and ensures the reliable stability needed for accurate measurements._x000D_ Features & Benefits_x000D_ • PA (polyamide) housed transducer has excellent impact resistance_x000D_ • Maximum coil operating temperature of +80°C for safe use in hot environments_x000D_ • Green LED (light-emitting diode) display for convenient status signalling_x000D_ • Light 190g weight for minimal strain on your system_x000D_ Phoenix Contact Current Transducer
