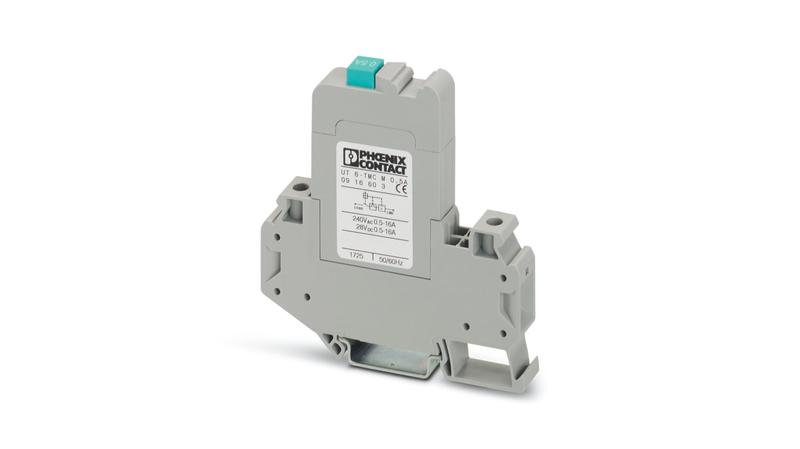

916603 Phoenix Contact 500 mA CLIPLINE Motor Protection Circuit Breaker, 264 V ac

Phoenix Contact Motor Protection Circuit Breaker, 1 Position, 0.5A Current Rating - UT 6-TMC M 0,5A - 0916603_x000D_ Reliably stop electrical faults from disrupting your workflow with this motor protection circuit breaker from Phoenix Contact. It's a thermomagnetic type that combines thermal and mechanical tripping mechanisms to deliver a fast reaction. The unit trips at between 6 and 12 times its 0.5A current rating, so you can be sure of effective surge protection that helps prevent damage to attached hardware. To prevent wear from overcurrent, it cuts your circuit's power if the current stays above 1.32 times the component's amp rating for long periods._x000D_ With its instantaneous break time, this breaker immediately deactivates your equipment before faults become dangerous. An integrated trip-free mechanism lets it break your circuit even if its actuator is stuck, ensuring you get tamper-proof protection. A long service life of up to 6,000 switching cycles makes this a reliable option for long-term use._x000D_ Features & Benefits_x000D_ • Low power loss of 1.1W for energy-efficient switching_x000D_ • Clips onto a DIN rail for easy mounting_x000D_ • UL94 inflammability rating of V0 to protect against the spread of fire_x000D_ • Meets EN 60934 standards for safe use in domestic appliances_x000D_ CLIPLINE COMBI terminal blocks_x000D_ A highly flexible system of terminal blocks featuring a disconnectable plug-in zone and 4 connection methods: screw (UT), spring-cage (ST), push-in (DT) and self-stripping (QT). The entire range is standardised. These four connections methods can be freely combined to connect terminal blocks and pluggable connectors, whatever their connector type. Both the bases and connectors are protected from coming into contact with hands. Self-stripping connections (QT-COMBI): Wiring time is reduced by up to 60%, as cables need not be stripped.A screwdriver is used to lock the self-stripping mechanism. Spring terminals (ST - COMBI): The connection point is opened using a screwdriver to lever the spring. This technology provides constant contact force for vibration-proof use. Screw connection (UT - COMBI): Universal terminal enabling a multi-conductor connection.
