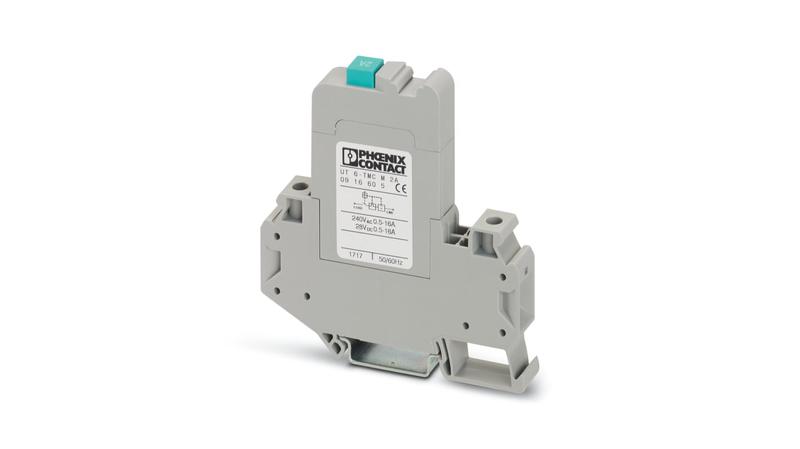

916605 Phoenix Contact Motor Protection Circuit Breaker CLIPLINE

Thermomagnetic Circuit Breakers UT-TMC_x000D_ The UT 6-TMC thermomagnetic circuit breakers ensure high system availability with the ability to re-connect with a clear status indication. They become integrated in the CLIPLINE complete system via the plug-in bridge shaft and can be clearly allocated with the large-surface centre marking._x000D_ Compact design, only 12.3 mm wide_x000D_ Large-surface marking possibilities, 1 per connection point and 1 on top of the device_x000D_ Double plug-in bridge shaft_x000D_ Available in current ranges 0.5 A to 16 A_x000D_ CLIPLINE COMBI terminal blocks_x000D_ A highly flexible system of terminal blocks featuring a disconnectable plug-in zone and 4 connection methods: screw (UT), spring-cage (ST), push-in (DT) and self-stripping (QT). The entire range is standardised. These four connections methods can be freely combined to connect terminal blocks and pluggable connectors, whatever their connector type. Both the bases and connectors are protected from coming into contact with hands. Self-stripping connections (QT-COMBI): Wiring time is reduced by up to 60%, as cables need not be stripped.A screwdriver is used to lock the self-stripping mechanism. Spring terminals (ST - COMBI): The connection point is opened using a screwdriver to lever the spring. This technology provides constant contact force for vibration-proof use. Screw connection (UT - COMBI): Universal terminal enabling a multi-conductor connection.
