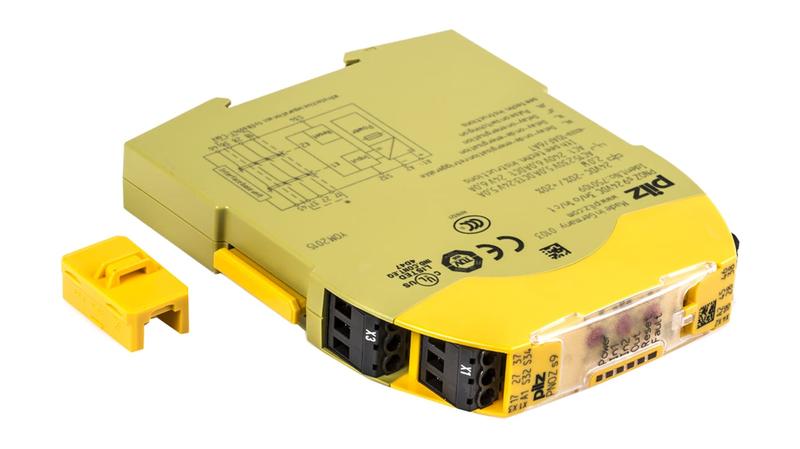

750109 Pilz PNOZsigma Series Output Module, 0 Inputs, 4 Outputs, 24 V dc, 3NO/1NC

PNOZsigma series contact extension blocks_x000D_ Extension modules for PNOZ sigma series safety blocks._x000D_ The extension blocks provide reinforcement and increase the number of safety contacts on a base device._x000D_ The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails._x000D_ Removable terminals with connection via spring terminals._x000D_ DIN rail mounting._x000D_ Standards_x000D_ EN 60947-5-1, EN 60204-1 VDE 0113-1_x000D_ Pilz Expansion Module_x000D_ The Pilz PNOZsigma series expansion module has 3 instantaneous contacts(NO) and 1 auxiliary contact(NC) relay output. It has a 24VDC supply voltage. It has a power rating of 2W and is available in a screw terminal type._x000D_ Features and Benefits_x000D_ DIN rail mounting_x000D_ The extension blocks provide reinforcement and increase the number of safety contacts on a base device_x000D_ The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails_x000D_ Removable terminals with connection via spring terminals_x000D_ Operating temperature ranges between -10°C and 55°C_x000D_ Certifications_x000D_ EN60204-1_x000D_ EN62061_x000D_ EN954-1_x000D_ VDE0113-1_x000D_ CSA certified_x000D_ UL listed_x000D_ TUV certified_x000D_ CCC certified
