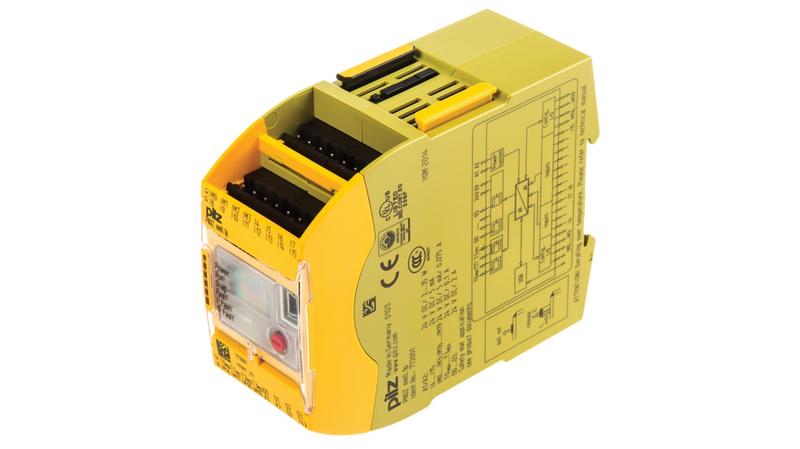

772001 Pilz PNOZmulti Mini Series Safety Controller, 12 Safety Inputs, 4 Safety Outputs, 24 V dc

PNOZmulti Mini Base Unit, Safety Controller_x000D_ The PNOZmulti Mini configurable safety relay from Pilz has an integral LCD display which provides status information and diagnostic messages. This safety controller has all the functions of the established PNOZmulti yet is only a space saving 45mm wide. A major advantage of the PNOZmulti Mini is that all required functions are configured directly via a PC running the PNOZmulti Configurator Software, instead of relying on wiring together different safety relays._x000D_ 20 inputs_x000D_ 4 safe semiconductor outputs_x000D_ 4 test pulse outputs_x000D_ LCD display for information and diagnostics_x000D_ USB configuration interface_x000D_ Can be configured using the PNOZmulti Configurator_x000D_ Compatible with PNOZmulti_x000D_ Pilz Safety Controller_x000D_ The Pilz PNOZmulti mini series is configurable safety relay with 12 safety inputs. It is the latest device with an integral LCD display that provides status information and diagnostic messages. This safety controller has all the functions of the established PNOZmulti is only a space-saving 45mm wide. A major advantage of this relay is that all required functions are configured directly via a PC running the PNOZmulti. The configurator software, instead of relying on wiring together different safety relays._x000D_ Features and Benefits_x000D_ 12 safe semiconductor outputs_x000D_ 4 test pulse outputs_x000D_ LCD display for information and diagnostics_x000D_ USB configuration interface_x000D_ Can be configured using the PNOZmulti configurator_x000D_ Certifications_x000D_ UL listed_x000D_ EC certified_x000D_ TÜV certified_x000D_ BG certified_x000D_ CCC certified
