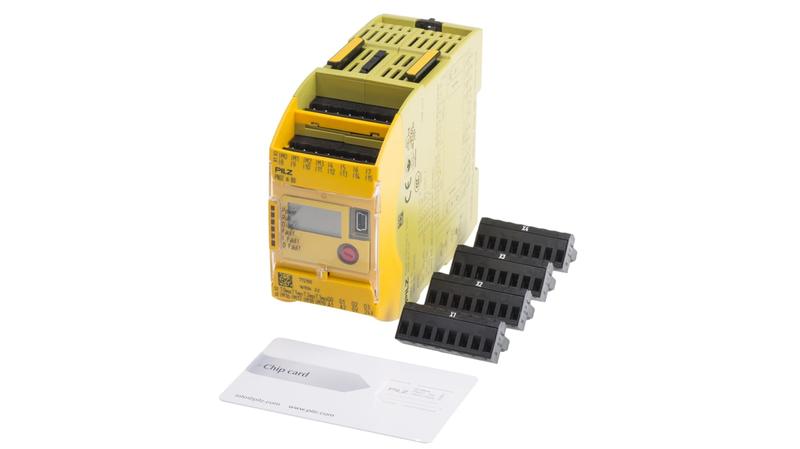

772100 Pilz PNOZmulti 2 PNOZ m BO Series Safety Controller, 20 Safety Inputs, 4 Safety Outputs, 24 V dc

PNOZmulti 2 Safety Controller Base Unit_x000D_ The PNOZ m B0 base unit is an energy efficient safety controller that uses up to 80 % less energy than comparable products. It has an illuminated display that provides fast commissioning and diagnostics._x000D_ Features and Benefits_x000D_ Complies with PLe of EN ISO 13849-1 and SIL CL 3 of IEC 62061, the maximum achievable value depends on the application_x000D_ Configurable using PNOZmulti Configurator via chip card or USB interface_x000D_ Exchangeable program memory_x000D_ 20 safe inputs, up to 8 of which can be configured as auxiliary outputs_x000D_ 4 safe semiconductor outputs, depending on the application up to PLe, SIL CL 3_x000D_ 4 test pulse outputs, up to 4 of which can be configured as standard outputs_x000D_ Illuminated display for error messages_x000D_ State of the supply voltage, the inputs and outputs, status and device information, customised texts can be displayed_x000D_ Rotary knob for menu control_x000D_ Applications_x000D_ The PNOZ m B0 connects E-stops, two-hand buttons, light beams, scanners, enabling switches, safety gate switches, operating mode selector switches, muting, safety mats and sensors._x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals and 32 kB Chipcard._x000D_ Pilz Safety Controller_x000D_ The Pilz PNOZ m B0 series base unit is an energy-efficient 12 input safety controller. It uses up to 80% less energy than comparable products. It has an illuminated display that provides fast commissioning and diagnostics._x000D_ Features and Benefits_x000D_ Configurable using PNOZmulti configurator via chip card or USB interface_x000D_ Exchangeable program memory_x000D_ Up to 8 of which can be configured as auxiliary outputs_x000D_ 4 safe semiconductor outputs, depending on the application up to PLe, SIL CL 3_x000D_ 4 test pulse outputs, up to 4 of which can be configured as standard outputs_x000D_ Illuminated display for error messages_x000D_ State of the supply voltage, the inputs, the outputs, status, device information, and customised texts can be displayed_x000D_ Rotary knob for menu control_x000D_ Applications_x000D_ Two-hand buttons_x000D_ Light beams_x000D_ Scanners_x000D_ Enabling switches_x000D_ Safety gate switches_x000D_ Operating mode selector switches_x000D_ Muting_x000D_ Safety mats and sensors_x000D_ Certifications_x000D_ CE certified_x000D_ UL listed_x000D_ TÜV certified_x000D_ BG certified_x000D_ CCC certified
