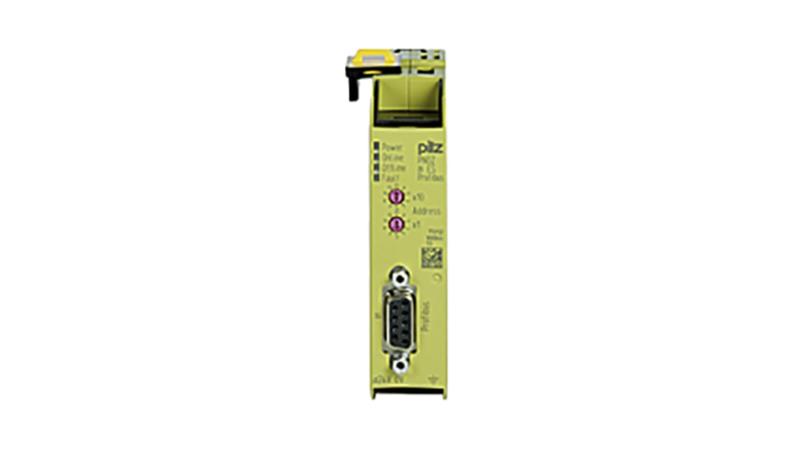

772132 Pilz PNOZ m ES Series Safety Module, 24 V dc

PNOZmulti 2 Communication/Fieldbus Module Profibus_x000D_ The PNOZ m ES Profibus expansion module connects to a base unit from the PNOZmulti 2 configurable control system._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ Connection for PROFIBUSDP_x000D_ Station addresses from 0 ... 99, selected via rotary switch_x000D_ Status indicators for communication with PROFIBUSDP and for errors_x000D_ In the PNOZmulti Configurator, 128 virtual outputs of the PNOZmulti 2 control system can be defined for communication with the fieldbus PROFIBUSDP_x000D_ Maximum 1 PNOZ m ES Profibus can be connected to the base unit_x000D_ Transmission rate: maximum 12 Mbps_x000D_ Connection to fieldbus via female 9-pin D-Sub connector_x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
