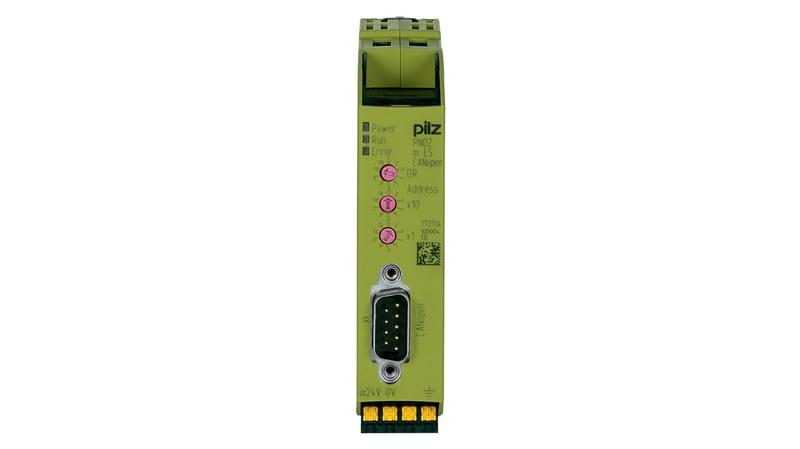

772134 Pilz PNOZ m ES Series Safety Module, 24 V dc

PNOZmulti 2 Communication/Fieldbus Module CANopen_x000D_ The PNOZ m ES CANopen expansion module connects to a base unit from the PNOZmulti 2 configurable control system._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ Connection for CANopen_x000D_ Station addresses from 0 ... 99, selected via rotary switch_x000D_ Transmission rate selected via rotary switch (1 Mbps/s, 10 kbit/s, 125 kbit/s, 20 kbit/s, 250 kbit/s, 50 kbit/s, 500 kbit/s, 800 kbit/s)_x000D_ Status indicators for communication with CANopen and for errors_x000D_ 128 virtual inputs and outputs on the control system PNOZmulti 2 can be defined in the PNOZmulti Configurator for communication with the fieldbus CANopen_x000D_ Maximum 1 PNOZ m ES CANopen can be connected to the base unit_x000D_ Connection to fieldbus via female9-pin D-Sub connector_x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
