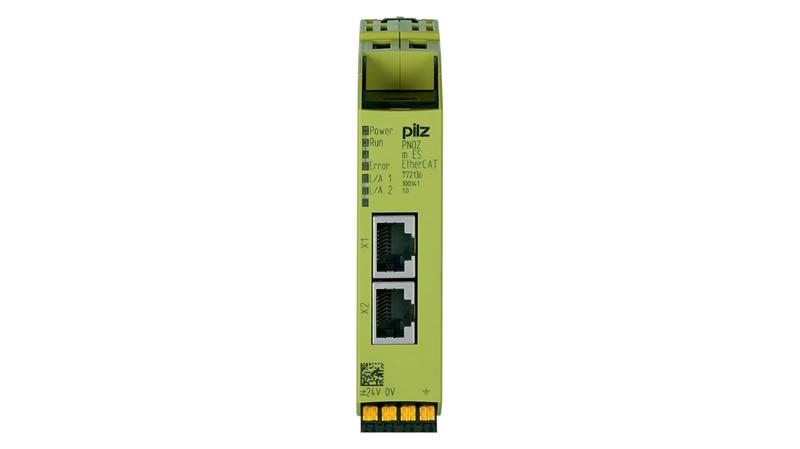

772136 Pilz PNOZ m ES Series Safety Module, 24 V dc

PNOZmulti 2 Communication/Fieldbus Module EtherCAT_x000D_ The PNOZ m ES EtherCAT expansion module connects to a base unit from the PNOZmulti 2 configurable control system._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ EtherCAT network protocol_x000D_ Supports CANopen over EtherCAT (DS301 V4.02 compliant)_x000D_ Status indicators for communication with EtherCAT and for errors_x000D_ 128 virtual inputs and outputs on the control system PNOZmulti can be defined in the PNOZmulti Configurator for communication with the fieldbus EtherCAT_x000D_ Maximum 1 PNOZ m ES EtherCAT can be connected to the base unit_x000D_ Transmission rate: 100 Mbps_x000D_ Maximum 148 B TxPDO and 20 B RxPDO_x000D_ Connection to fieldbus via RJ45 connector_x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
