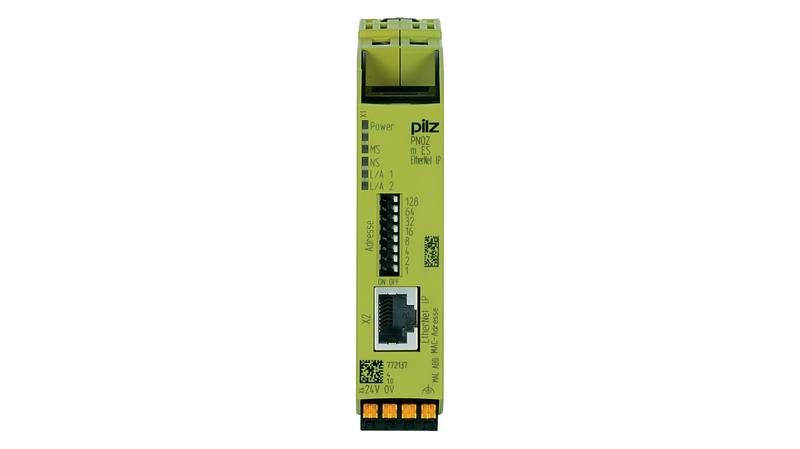

772137 Pilz PNOZ m ES Series Safety Module, 24 V dc

PNOZmulti 2 Communication/Fieldbus Module EtherNet/IP_x000D_ The PNOZ m ES EtherNet/IP expansion module connects to a base unit from the PNOZmulti 2 configurable control system._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ Connection for EtherNet/IP as adapter_x000D_ Transmission rate 10 Mbps (10BaseT) and 100 Mbps (100BaseTX)_x000D_ Status indicators for communication and for errors_x000D_ 128 virtual inputs and outputs on the control system PNOZmulti can be defined in the PNOZmulti Configurator for communication with the fieldbus EtherNet/IP_x000D_ Maximum 1 PNOZ m ES EtherNet/IP can be connected to the base unit_x000D_ 2-port switch_x000D_ Device Level Ring (DLR)_x000D_ Integrated web server_x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
