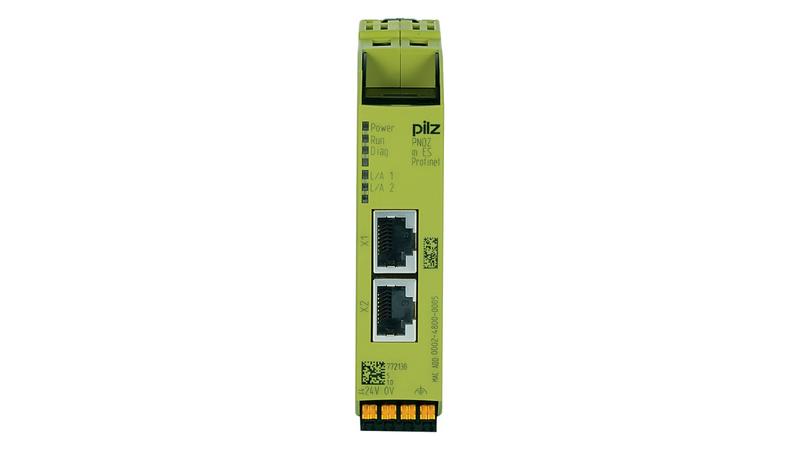

772138 Pilz PNOZ m ES Series Safety Module, 24 V dc

PNOZmulti 2 Communication/Fieldbus Module Profinet_x000D_ The PNOZ m ES Profinet expansion module connects to a base unit from the PNOZmulti 2 configurable control system._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ Connections for PROFINET_x000D_ Status, diagnostic and error displays for communication with PROFINET_x000D_ 128 virtual inputs and outputs on the control system PNOZmulti 2 can be defined in the PNOZmulti Configurator for communication with the fieldbus PROFINET_x000D_ Transmission rate 100 Mbps (100BaseTX), full and half duplex_x000D_ Maximum 1 PNOZ m ES Profinet can be connected to the base unit_x000D_ Two RJ45 ports_x000D_ Profinet I/O device (V2.2) functions in accordance with Conformance Class C_x000D_ Supported functions: RT, IRT, MRP, LLDP, I&M 0­4_x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
