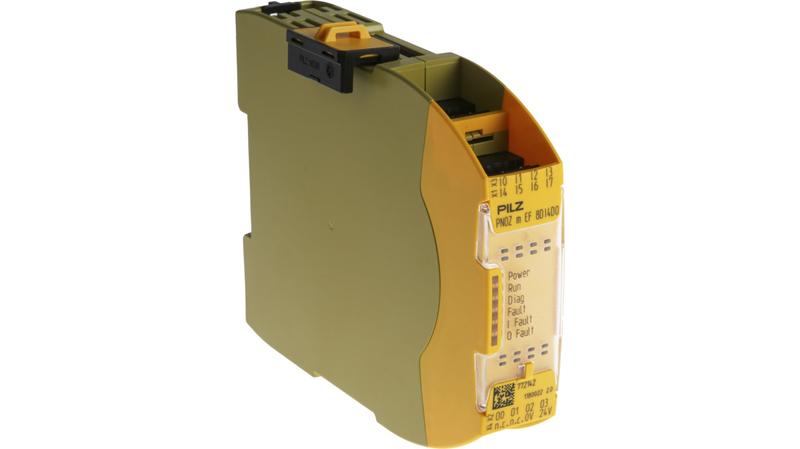

772142 Pilz PNOZ m EF Series Input/Output Module, 8 Inputs, 4 Outputs, 24 V dc

PNOZmulti 2 Safe Input/Semiconductor Output Module_x000D_ The PNOZ m EF 8DI4DO expansion module connects to a base unit from the PNOZmulti 2 configurable control system. It has 8 safe inputs and 4 safe semiconductor outputs. Depending on the application, it offers protection up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ 8 safe inputs_x000D_ 4 safe semiconductor outputs, up to PLe of EN ISO 138491 and up to SIL CL 3 of EN IEC 62061_x000D_ LED for error messages, diagnostics, supply voltage, output circuits and input circuits_x000D_ Test pulse outputs used to monitor shorts across the inputs_x000D_ Monitoring of shorts between the safety outputs_x000D_ Applications_x000D_ The PNOZ m EF 8DI4DO can connect E-Stop, two-hand button, safety gate limit switch, start button, light beam, scanner, enabling switch, PSEN, operating mode selector switch._x000D_ Standards_x000D_ EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3._x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals._x000D_ Pilz Input/output Module_x000D_ The Pilz PNOZmulti 2 series input/output relay module is the latest device has 8 safe inputs and 4 safe relay outputs. It has a power rating of 2W and is available in a screw terminal type. Its expansion module connects to a base unit from the 2 configurable control system. It has a supply voltage rating of 24VDC._x000D_ Features and Benefits_x000D_ DIN rail mounting_x000D_ LED for error messages, diagnostics, supply voltage, output circuits, and input circuits_x000D_ Test pulse outputs used to monitor shorts across the inputs_x000D_ Monitoring of shorts between the safety outputs_x000D_ Operating temperature ranges between -10°C and 55°C_x000D_ Certifications_x000D_ EN ISO 13849-1PLe_x000D_ EN ISO13849-1Cat4_x000D_ ENIEC62061_x000D_ SILCL3_x000D_ CSA certified_x000D_ UL listed_x000D_ TUV certified_x000D_ CCC certified
