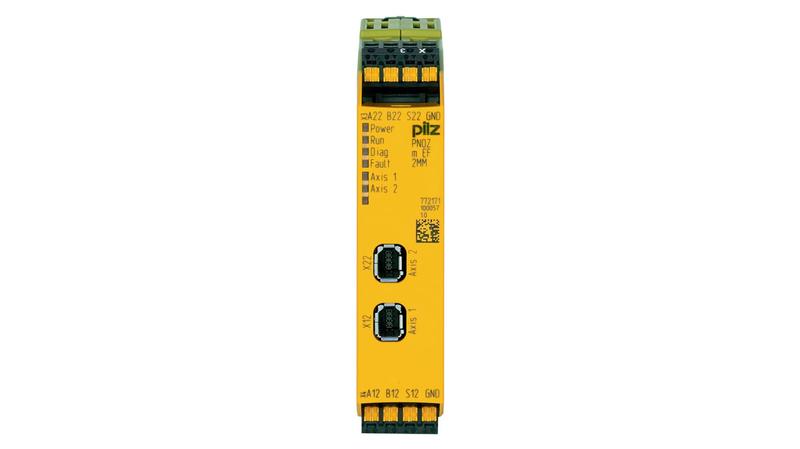

772171 Pilz PNOZ m EF Series Input Module, 24 V dc

PNOZmulti 2 Motion Monitoring Modules_x000D_ The PNOZ m EF *MM expansion module connects to a base unit from the PNOZmulti 2 configurable control system. Two models are available: PNOZ m EF 1MM provides safe monitoring of one axis and PNOZ m EF 2MM provides safe monitoring of two independent axes._x000D_ Features and Benefits_x000D_ Can be configured in the PNOZmulti Configurator_x000D_ Monitoring of 1 axis, stock no. 918-6617_x000D_ Monitoring of two independent axes, stock no. 918-6611_x000D_ Measured value recorded by proximity switch and encoder_x000D_ LED display for supply voltage, diagnostics, axis status and errors_x000D_ Support the safe drive function in accordance with EN 61800-5-2_x000D_ Applications_x000D_ Safe speed monitoring (SSM)_x000D_ Safe speed range monitoring (SSRM)_x000D_ Safe direction of movement monitoring (SDIM)_x000D_ Safe operating stop monitoring (SOSM)_x000D_ Analogue voltage (track S)_x000D_ Standards_x000D_ EN ISO 13849-1 PLe; EN ISO 13849-1 Cat. 4; EN IEC 62061 SIL CL 3; IEC 61511 SIL 3._x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, CCC._x000D_ Supplied with_x000D_ Screw terminals.
