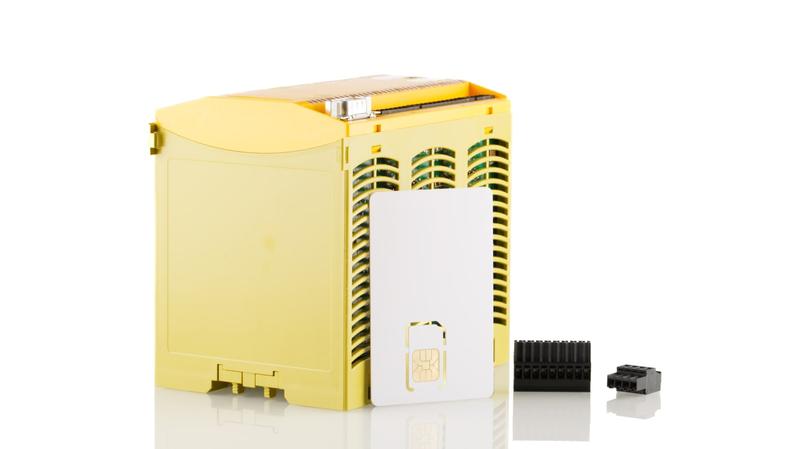

773110 Pilz PNOZmulti Series Safety Controller, 20 Safety Inputs, 6 Safety Outputs, 24 V dc

Pilz Safety Controller_x000D_ The Pilz PNOZmulti series is a 20 safety inputs and 6 safety outputs safety controller. This is an innovative device with positiv: guided relay outputs and semiconductor outputs. The safety function remains effective in the case of a component failure. The relay contacts meet the requirements for safe separation through increased insulation. The safety outputs are tested periodically using a disconnection test._x000D_ Note_x000D_ Configuration software and pre: license sold separately_x000D_ Call Pilz to register, this activates the software and is used for technical queries and support from Pilz_x000D_ In order to program the controller from your PC, you will need an adaptor and cable_x000D_ Supplied with_x000D_ Plug: in screw terminals and 32K SIM card_x000D_ Features and Benefits_x000D_ E-STOP pushbutton_x000D_ Two: hand button_x000D_ Safety gate limit switch_x000D_ Reset button_x000D_ Light barrier_x000D_ Scanner_x000D_ Enable switch_x000D_ PSEN – operating mode selector switch – safety mat_x000D_ LED indicator for diagnostics, supply voltage, output circuits, and input circuits_x000D_ Circuit is redundant with built: in self: monitoring_x000D_ Max. 8 expansion modules and 1 fieldbus module can be connected_x000D_ Monitors shorts between the safety outputs_x000D_ Plug: in connection terminals (either cage clamp terminal or screw terminal)_x000D_ One system covers both safety: related (E: stop, light curtain etc) and standard control functions_x000D_ Economical non: expandable solution_x000D_ Simple wiring means short commissioning times_x000D_ Simple intuitive programming resulting in time and cost saving_x000D_ Flexible to apply, as only one solution required for applications up to category 4 (EN954: 1) and applications up to SIL 3 (EN61508)_x000D_ Simple, user: friendly diagnostics mean short down: time, and high plant availability_x000D_ Compact design, DIN rail mount_x000D_ Certifications_x000D_ UL listed_x000D_ CCC certified_x000D_ BG certified_x000D_ VDE 0113Part 1_x000D_ EN 60204: 1_x000D_ GOST R certified_x000D_ TUV certified_x000D_ NFPA 79: 2002_x000D_ Approvals_x000D_ UL, CCC, GOST R, TUV, NFPA 79:2002, UL508, OSHA
