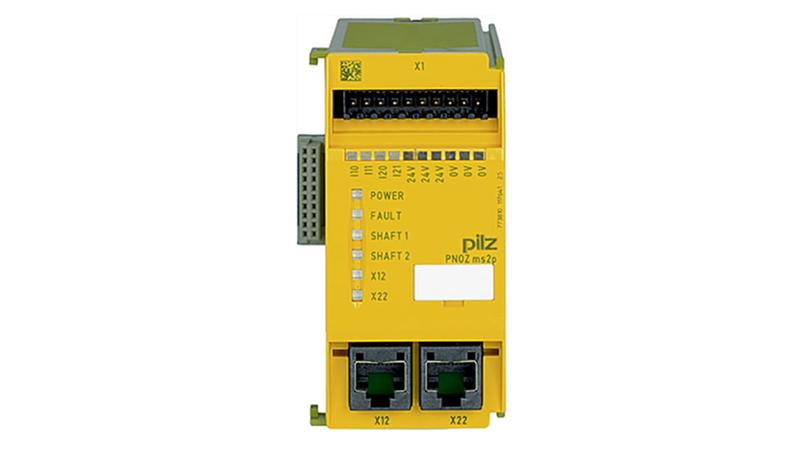

773810 Pilz PNOZ ms Series Input/Output Module, 24 V dc

PNOZmulti Motion Monitoring Module_x000D_ The PNOZ ms2p module is used to monitor standstill, speed and direction of rotation up to Category 3 of EN 954-1. It can only be connected to a PNOZmulti base unit._x000D_ Features and Benefits_x000D_ Monitoring of 2 independent axes_x000D_ Connection per axis: 1 incremental encoder, 2 proximity switches, 1 incremental encoder and 1 proximity switch_x000D_ Monitors standstill, speed (8 values can be set) and direction of rotation_x000D_ Axis types, input device types and reset mode can be selected in the PNOZmulti Configurator_x000D_ Status indicators for supply voltage, incremental encoders, proximity switches, standstill and excess speed status, faults on the system_x000D_ Proximity switch connection technology (plug-in connection terminals)_x000D_ Incremental encoder connection technology (RJ-45 female connector)_x000D_ Galvanic isolation between the connections X1, X12 and X22_x000D_ Max. 4 speed monitors can be connected to the base unit_x000D_ Standards_x000D_ EN ISO 13849-1 PLe; EN IEC 62061 SIL CL 3._x000D_ Approvals_x000D_ CE, cULus Listed, TÜV, BG, KOSHA, CCC._x000D_ Supplied with_x000D_ Screw terminals.
