PFXHTB1C0DM9LP Pro-face HMI Enclosure

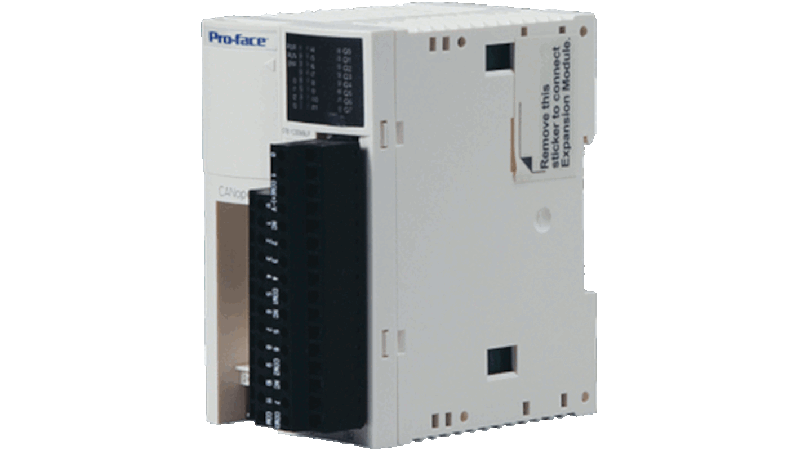

PFXHTB1C0DM9LP Pro-face Canopen Slave Unit._x000D_ EX Modules - connects to up to 7 per HTB._x000D_ 35 mm DIN Rail mounting._x000D_ 19 W power consumption._x000D_ Weight 185 g._x000D_ Input._x000D_ Input points - 12 Input points (common line)._x000D_ Sink input._x000D_ Input current 5.0kΩ (I0, I1, I6, I7), 3.4kΩ (I2 to I5, I8 to I11)._x000D_ Input delay time - 35μs + filter value (I0, I1, I6, I7), 40μs + filter value (I2 to I5, I8 to I11), 45μs + filter value (I0, I1, I6, I7), 150μs + filter value (I2 to I5, I8 to I11)._x000D_ Isolation - Internal circuit: photocoupler isolated (isolation protection put to AC500V rms)_x000D_ Between input terminals: not isolated._x000D_ Output Q0, Q1._x000D_ 2 Output points._x000D_ Source output._x000D_ Design 2 Points, 1 Common line._x000D_ 1 A maximum load current common line._x000D_ Voltage drop - DC1V (max.) (voltage between COM and output terminals when output is on)._x000D_ Output delay time - 5μs (maximum)._x000D_ Isolation - Between output terminal and internal circuit: photocoupler isolated (isolation protection up to AC500 V rms). Between output terminals: not isolated._x000D_ Output Q2, Q7._x000D_ Output 6 points._x000D_ Relay output._x000D_ Design - COM1: 3, NO contacts, COM2: 2, NO contacts, COM3: 1, NO contacts._x000D_ Maximum load current 10ms (max.) (Bounce time not included), 5ms (max.) (Bounce time not included)._x000D_ Isolation Between output to internal circuit: AC1500Vrms, 1min Between output to terminals (COMs): AC750Vrms, 1min
