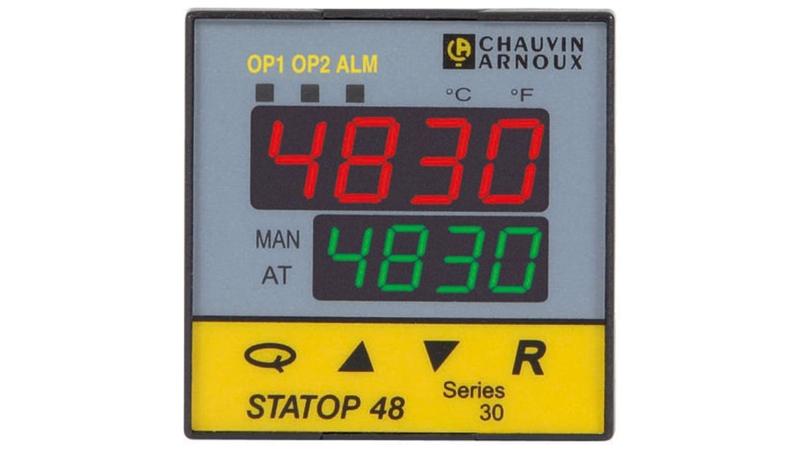

LR04830-000 Pyro Controle STATOP 48 PID Temperature Controller, 48 x 48mm, 1 Output Relay, 90 → 260 V ac Supply Voltage

Pyro Controle Temperature Controller_x000D_ The Pyro Controle STATOP 30 series temperature controller has a supply voltage rating ranging from 90VAC to 260VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN)device. It has a single relay output. This device equipped with an automatic action adjustment system with a self-adjusting PID regulation mode. It also includes fuzzy logic that carries out automatic process recovery. The controller is a combination of technical sophistication and user-friendliness and can be used by people with no specific control skills._x000D_ Features and Benefits_x000D_ Adjustable hysteresis from 0 second to11 seconds_x000D_ Communication by RS 485 connection (depending on model)_x000D_ Digital regulators fitted with automatic action adjustment system is self-adjusting PID regulation mode_x000D_ Display has 2 x 10,000 points_x000D_ Operating temperature ranging between -10°C and 50°C_x000D_ Programmable temperature input is thermocouple and Pt 100ohm resistance_x000D_ Proportional band is 0°C to 20°C_x000D_ Regulation algorithm is PID and fuzzy logic_x000D_ Regulation output is 2A inverter relay and analogue 4mA to 20 mA and 0V to 10V or logic 0V to 5V_x000D_ Regulators fitted with 2 displays are red for measurement and green for setpoint_x000D_ Temperature ramp is 0°C/minute to 480°C/minute_x000D_ Timer is 0 minutes to 9999 minutes_x000D_ Certifications_x000D_ IP50 rated
