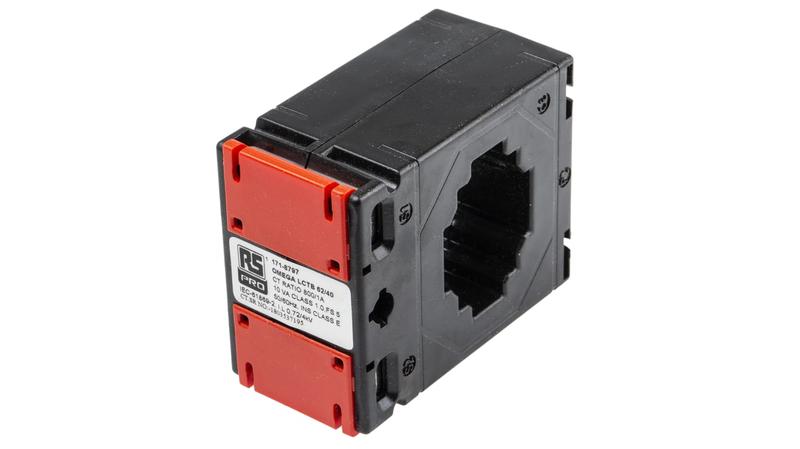

171-8797 RS PRO Current Transformer

RS Pro CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options._x000D_ Comprehensive class accuracy_x000D_ Cost effective moulded case current transformer_x000D_ Various mounting options including wall mounting, cable mounting and bus bar mounting_x000D_ Wire sealable terminal covers_x000D_ Primary current 5A to 7500A_x000D_ Secondary current 1A or 5A_x000D_ Over current limiting factor FS5, FS10, FS15_x000D_ Rated frequency 50Hz or 60Hz_x000D_ Rated continuous thermal current (standard) 1,2 x in_x000D_ Rated short time thermal current with 60 x in, 1 s (Max 40kA)_x000D_ Rated isolation level 0.72/3 kV or 0.72/4 kV_x000D_ Altitude up to 2000 m_x000D_ Ambient temperature -5°C to + 55°C (0-95% relative humidity,non condensing!)_x000D_ Storage temperature -25°C to + 70°C
