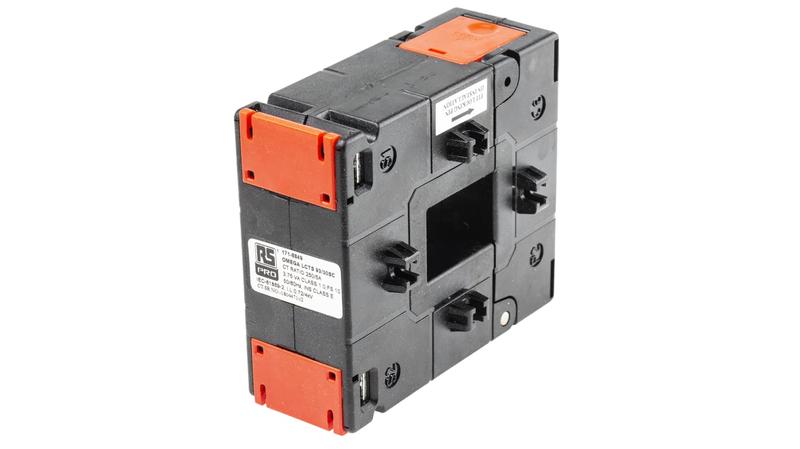

171-8849 RS PRO Base Mounted Current Transformer, 250A Input, 250:5, 5 A Output, 33 x 23mm Bore

RS PRO Base Mounted Current Transformer, 33 x 23 mm diameter, 250 A Input, 5 A Output, 250:5_x000D_ Accurately measure the current of an AC electrical system without disconnecting wires or interrupting power using this RS PRO base mounted current transformer. You'll find it in commercial premises such as power stations, electronics engineering facilities and engineering plants._x000D_ Made for speedy installation, you can surface or base mount this split-core transformer and wire it into your circuit in minutes. It comes in a flame retardant enclosure for protection against fire and added peace of mind. The component comes in polycarbonate casing and it has an Ingress Protection (IP) rating of IP20, so it's protected against touch with fingers, as well as dust and objects over 12 mm in size._x000D_ Features and Benefits_x000D_ • Bore size of 33 x 23 mm_x000D_ • Current ratio of 250:5_x000D_ • Inner diameter of 33 x 23 mm_x000D_ • Input current of 250 A_x000D_ • Maximum temperature of +70°C_x000D_ • Minimum temperature of +20°C_x000D_ • Surface mounting type_x000D_ • Output current of 5 A_x000D_ • Overall depth of 40 mm_x000D_ • Overall height of 106 mm_x000D_ • Overall width of 93 mm_x000D_ • Base-mounted transformer type
