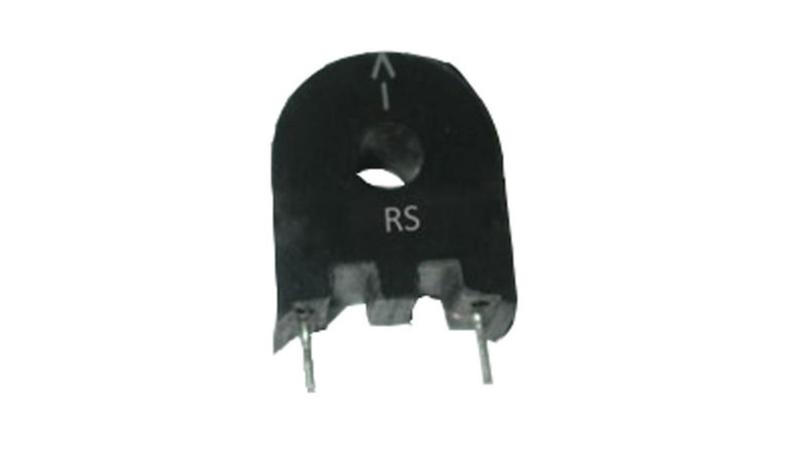

173-0044 RS PRO Current Transformer, 15A Input, 300:1, 5mm Bore

RS Pro PCB Mount Current Sense Transformers_x000D_ RS Pro current sense transformers are designed as a method of controlling, monitoring or measuring AC currents. These current transformers are fully encapsulated for optimal PC board mounting. The sensors serve as feedback elements between the output and the pulse circuitry providing accurate regulation of switch mode power supplies._x000D_ Features_x000D_ Frequency range from 20 kHz to 200 kHz_x000D_ Primary current rating to 15 Amps_x000D_ Primary to secondary isolated to 2500 V ac_x000D_ Optimum performance over designated current and frequency range_x000D_ Fully RoHS compliant_x000D_ Applications_x000D_ Lighting_x000D_ Switch controls Ultra sound current_x000D_ Isolated current feed – back signal in switch mode supplies_x000D_ Motor current load/ overload_x000D_ High-resolution sonar current_x000D_ Isolated bi – directional current sensor with full wave bridge rectifier_x000D_ Low Cost Current Sense Transformers
