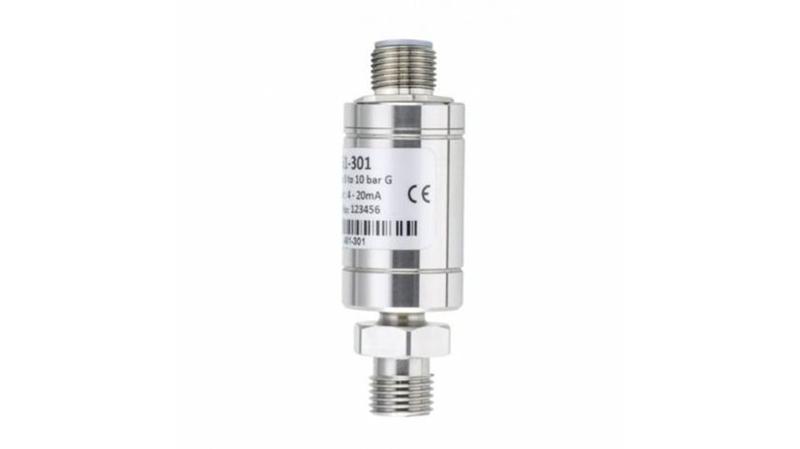

175-4990 RS PRO Pressure Sensor, 0bar Min, 16bar Max, Analogue Output, Relative Reading

RS PRO Pressure Sensors_x000D_ Introducing RS PRO pressure sensors, also known as pressure transmitters. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing._x000D_ Why would choose these types of pressure sensors?_x000D_ Pressure sensors with 0-5 V or 4-20mA outputs are transmitters least affected with electrical noise and resistance in signal wires, perfect technology for long distance transmission._x000D_ What is the difference between a pressure transmitter and a pressure transducer?_x000D_ Pressure transmitters regularly get confused with a pressure transducer. A pressure sensor with a current loop output such as 4-20 mA is technical a pressure transmitter. If a pressure sensor provides an mV voltage output or a non-amplified output then it’s a pressure transducer._x000D_ Characteristics_x000D_ The electronics incorporate a microprocessor-based amplifier, requiring no adjustments and giving stable electronics, especially for industrial applications. The device is temperature compensated and supplied with a traceable serial number._x000D_ Features and Benefits_x000D_ • Piezo-resistive thick film ceramic sensor_x000D_ • Compact and rugged_x000D_ • Stainless steel body_x000D_ • Accuracy <±0.25%_x000D_ • Output 4-20 mA_x000D_ • Pressure rating: -1 to +9 Bar G_x000D_ • Threaded mounting_x000D_ • BSP 1/ 4_x000D_ • M12 4-pin connector_x000D_ • CE Compliant_x000D_ Material Specifications_x000D_ • Housing: Stainless Steel 316L_x000D_ • O ring seals: Viton_x000D_ • Diaphragm: Ceramic Al2 O3 96%_x000D_ • Media wetted parts: Housing & connection, O ring seal, diaphragm_x000D_ • Weight: 100 g_x000D_ • Installation position: Flexible_x000D_ • Operational Life: >100x 106 cycles_x000D_ • Insulation resistance >50 hms at 50 V dc_x000D_ • IP67_x000D_ RS PRO Range IPS-M12 Series Industrial Pressure Sensor Options_x000D_ 4-20mA Pressure Sensor Range_x000D_ • RS Stock no: 175-4983 = Pressure Transmitter 0-1barG 4-20mA M12_x000D_ • RS Stock no: 175-5001 = Pressure Transmitter 0-6barG 4-20mA M12_x000D_ • RS Stock no: 175-5003 = Pressure Transmitter -1 to +9barG 4-20mA M12_x000D_ • RS Stock no: 175-4985 = Pressure Transmitter 0-10barG 4-20mA M12_x000D_ • RS Stock no: 175-4990 = Pressure Transmitter 0-16barG 4-20mA M12_x000D_ • RS Stock no: 175-4981 = Pressure Transmitter -1 to +24barG 4-20m M12_x000D_ • RS Stock no: 175-4992 = Pressure Transmitter 0-25barG 4-20mA M12_x000D_ • RS Stock no: 175-4999 = Pressure Transmitter 0-400barG 4-20mA M12_x000D_ • RS Stock no: 175-4987 = Pressure Transmitter 0-100barG 4-20mA M12_x000D_ • RS Stock no: 175-4995 = Pressure Transmitter 0-250barG 4-20mA M12_x000D_ 0-5 V Pressure Sensor Range_x000D_ • RS Stock no: 175-4984 = Pressure Transmitter 0-1barG 0-5V M12_x000D_ • RS Stock no: 175-5002 = Pressure Transmitter 0-6barG 0-5V M12_x000D_ • RS Stock no: 175-5005 = Pressure Transmitter -1 to +9barG 0-5V M12_x000D_ • RS Stock no: 175-4986 = Pressure Transmitter 0-10barG 0-5V M12_x000D_ • RS Stock no: 175-4991 = Pressure Transmitter 0-16barG 0-5V M12_x000D_ • RS Stock no: 175-4982 = Pressure Transmitter -1 to +24barG 0-5V M12_x000D_ • RS Stock no: 175-4993 = Pressure Transmitter 0-25barG 0-5V M12_x000D_ • RS Stock no: 175-4998 = Pressure Transmitter 0-40barG 0-5V M12_x000D_ • RS Stock no: 175-4989 = Pressure Transmitter 0-100barG 0-5V M12_x000D_ • RS Stock no: 175-4996 = Pressure Transmitter 0-250barG 0-5V M12_x000D_ • RS Stock no: 175-5000 = Pressure Transmitter 0-400barG 0-5V M12_x000D_ Applications Information_x000D_ • Temperature testing facilities_x000D_ • Process control_x000D_ • Automation_x000D_ • Industrial measurement_x000D_ The IPS-M12 series is suitable for use in a wide range of industrial applications. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless steel housing The electronics incorporate a microprocessor based amplifier, requiring no adjusting and giving stable electronics, especially for industrial applications... Each device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data*. Mating cable and plug assemblies are available._x000D_ Piezo-resistive thick film ceramic sensor_x000D_ Stainless steel body_x000D_ Accuracy <±0.25% FS BFSL_x000D_ 0-5V or 4-20mA outputs_x000D_ Pressure ranges from -1 to 400 bar_x000D_ M12 4-pin connector_x000D_ Pressure Sensors, RS PRO
