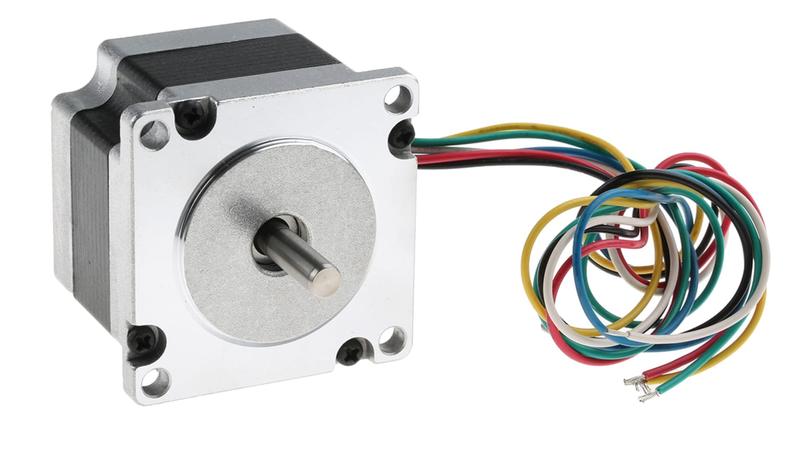

180-5287 RS PRO Hybrid Stepper Motor, 5.7 V, Unipolar, 1.8°, 6.35mm Shaft

RS PRO Unipolar Hybrid Stepper Motor 1.8°, 5.7 V_x000D_ Unipolar hybrid stepper motors from RS PRO are high performance DC motors, perfect for applications requiring precise movement or rotation in steps. They combine characteristics from both VR (variable reluctance) stepper motors and PM (permanent magnet) stepper motors, offering a versatile motor suitable for a range of applications. With RS PRO hybrid stepper motors, high torque can be achieved even with low speeds._x000D_ Features and benefits_x000D_ Hybrid technology combining VR and PM motor characteristics_x000D_ High torque with low speed_x000D_ Suitable for a range of applications_x000D_ Lightweight yet durable design_x000D_ 6 lead configuration_x000D_ Holding torque: 0.39 Nm_x000D_ Stepping angle: 1.8°_x000D_ Rated voltage: 5.7 V_x000D_ Applications_x000D_ A stepper motor is a type of DC motor with a shaft that turns in precise steps by dividing full rotations via multiple coils that are organised in phases. Stepper motors are ideal for applications requiring discrete and precise torque or movement. These motors offer a variety of driver modes including wave drive, full step, half step and micro-step and can be operated via stepper controllers. Stepper motors are commonly used in applications such as:_x000D_ CNC machines_x000D_ Medical scanners_x000D_ Printers_x000D_ Disc drives_x000D_ Digital cameras_x000D_ FAQs_x000D_ What is the stepping rate?_x000D_ This stepper motor features a 1.8° step angle, equivalent to 200 steps per revolution._x000D_ What is the length of the shaft?_x000D_ The length of the shaft is 19mm._x000D_ What is the max radial force?_x000D_ The max radial force for this model is 75 N (20 MM from front flange)._x000D_ What is the max axial force?_x000D_ The max axial force for this model is 15 N._x000D_ What is the difference between unipolar and bipolar?_x000D_ Unipolar stepper motors operate with a single winding with a center tap per phase. Each section of the winding is switched on for each direction of the magnetic field. Unlike the unipolar stepper motor, the bipolar stepper motor has two leads per phase, neither of which are common.
