185-3015 RS PRO Type RTD Resistance Thermometer Detector (RTD) Wire, 5m, PTFE Insulation, +260°C Max, 7/0.2mm

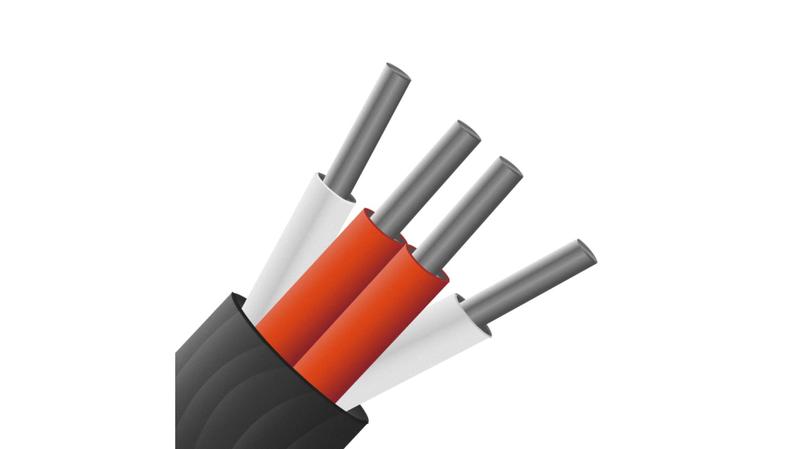

RS PRO RTD Extension Cable – 4 core PTFE, 5m_x000D_ Introducing the range of RS PRO Platinum Resistance thermometer extension cables, ideal for use as a general-purpose extension wire and can be used to extend 2, 3 or 4 wire RTD configurations. The material of this extension cable offers high flexibility and is waterproof._x000D_ Most commonly used with the Pt100Ω thermometers but also suitable with other types such as Pt130, Pt500 & Pt1000Ω._x000D_ This extension cable has 4 cores and is PTFE insulated with 7/0.2mm silver plated copper conductors. The cores are twisted with mylar tape and silver plated copper braided screen with PTFE insulated outer jacket. The silicone rubber material of the jacket offers heat resistance to 260°C has good electrical and mechanical properties, highly flexible, resistant to oils, acids, other adverse fluids steam and gasses._x000D_ The cores are colour coded with 2 x Red and 2 x White with a black outer jacket and are supplied in 5, 10 and 25 metre reel lengths._x000D_ Features and Benefits_x000D_ • This RS PRO cable has PTFE insulation and is for extending Platinum Resistance Thermometers_x000D_ • This type of extension cable has an excellent temperature range, from –75°C to +260°C_x000D_ • Can be used with 2,3 or 4 wire RTD configurations_x000D_ • Versatile and can be used with many types of thermometres such as Pt100Ω Pt130, Pt500 & Pt1000Ω_x000D_ • This makes for a great general purpose cable as it is highly flexible and waterproof as well able to protect your wires from oils, acids, steam, gasses and any other fluid it may come into contact with_x000D_ • PTFE insulated outer jacket gives this type of cable an extra layer of protection making the cable durable and reliable_x000D_ Applications_x000D_ Thermometers are used in a variety of workplaces and also for home uses as well. This type of cable can add additional flexibility and versatility to a platinum resistance thermometer and are offered in a range of different lengths, 5, 10 and 25 metres to suit any combination and application they are needed for. Thermometer extension cables can often be found in:_x000D_ Scientific Labratories_x000D_ Thermostats in homes and offices_x000D_ Manufacturing, engineering and production environments_x000D_ Product codes for other lengths_x000D_ • 10m - 4929775_x000D_ • 25m - 2904976_x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
