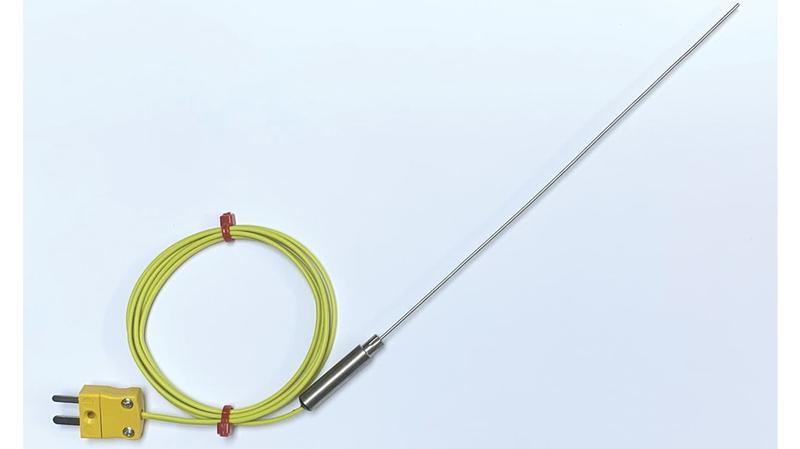

185-6794 RS PRO Type K Thermocouple 152mm Length, 1mm Diameter → +750°C

RS PRO ANSI Mineral Insulated Thermocouple with 1 metre lead_x000D_ From RS PRO the K-type Mineral Insulated Thermocouple, designed to be highly flexible so it can be suitable for many different temperature applications and processes. This wire has a 1 metre lead wire that is PFA insulated which makes it highly flexible. This has been designed by RS PRO to have single element, hot junction insulated from sheath which offers protection against spurious electrical signals. This thermocouple probe is made from Inconel 600 this means it can deal with a wide range of temperatures from low temperatures of -40°C to high temperatures of +750°C._x000D_ Features and Benefits_x000D_ • This RS PRO thermocouple is type K sensor (Nickel Chromium/Nickel Aluminium) with a PFA insulated lead wire that is highly flexible meaning it can be bent and formed to be suitable for many different applications and processes_x000D_ • Probe material is made from Inconel® Alloy 600 which has excellent oxidation and corrosion resistance making it a fantastic material for measurement in different examples_x000D_ • The sheaths measurements are 1.0mm diameter x 152mm (6 inch) length_x000D_ • Minature flat pin plug provided_x000D_ • As the probe is made from Inconel 600 this means it can deal with a wide range of temperatures from low temperatures of -40°C to high temperatures of +750°C_x000D_ • The thermocouple is colour coded in accordance with ANSI MC96.1_x000D_ • Wire tolerance of the thermocouple is in accordance with IEC 60584-1, class 1 for optimum accuracy_x000D_ Applications_x000D_ Mineral insulated thermocouples are perfect for performing in a variety of different environments even exposed to pressure and high temperatures you can rely on this temperature sensor to do its job. Places you'll commonly find these sensors include_x000D_ Heat treatment processes_x000D_ Annealing furnaces_x000D_ Chemical reactors_x000D_ Man-made fibre & synthetic material production_x000D_ Steam Boilers_x000D_ Paper industry_x000D_ Certifications_x000D_ • ANSI MC96.1_x000D_ • IEC 60584-1_x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot junction, also known as the measuring junction, is connected to the body whose temperature is going to be measured, while the cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect._x000D_ Inconel® Alloy 600_x000D_ Inconel is a registered trademark of Special Metals Corporation for a family of austenitic nickel-chromium-based superalloys. As the probe has been made from inconel it is oxidation and corrosion resistant meaning it is designed to perform in environments where it will be subjected to pressure and high temperatures of +750°C, although it is not suitable for sulphur bearing atmospheres above 550°C._x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
