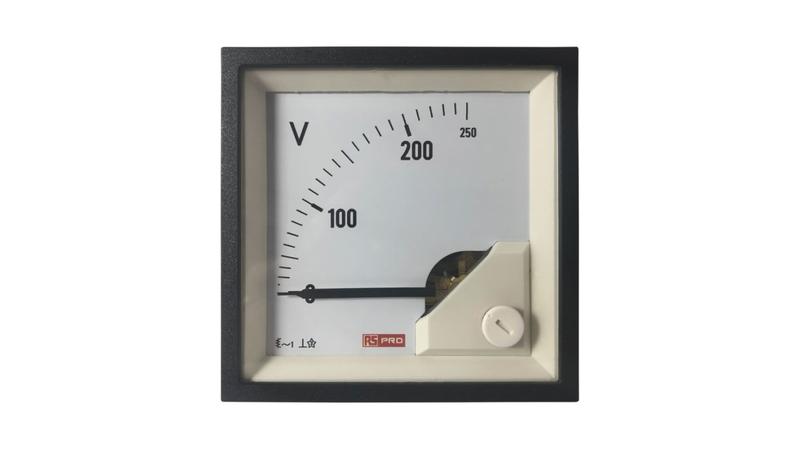

186-2455 RS PRO Analogue Voltmeter AC, Analogue Display 0.01

RS PRO AC Analogue Panel Voltmeter_x000D_ The RS PRO 68mm x 68mm cut-out AC analogue panel voltmeter has a measurement range of 0V to 250VAC input. The DIN 72 style panel meter comprises of moving iron movement. It indicates true RMS value and is substantially independent of system waveform. The scales are calibrated down to 10%. The meter is housed in a moulded polycarbonate case and is suitable for measurement of voltages in the frequency range of 15Hz to 100Hz._x000D_ Features and Benefits_x000D_ • Operating temperature ranges between -10°C and 65°C_x000D_ • Accuracy: 1%_x000D_ • Pointer: Knife-edge type_x000D_ • Pointer deflection: 0° to 90°_x000D_ • Nominal range of use: 6V to 100V_x000D_ • Shock resistance: 15g for pulse duration 11 milliseconds_x000D_ • Moulded square case suitable for mounting control/switchgear panels in machinery consoles_x000D_ • Overload: 1.2 times nominal voltage (continuous)_x000D_ • Relative humidity: Less than 75% annual average (noncondensing)_x000D_ Certifications_x000D_ • UL 94 V-0 approved_x000D_ • 2014/30/EC (EMC directive)_x000D_ • 2014/35/EC (low voltage directive)_x000D_ • CE certified_x000D_ • IP52 rated_x000D_ • EN 61010_x000D_ • VDE 0100-410: 2018-10 approved_x000D_ • IEC 529_x000D_ • IEC 61010_x000D_ • ISO 20653: 2006-08
