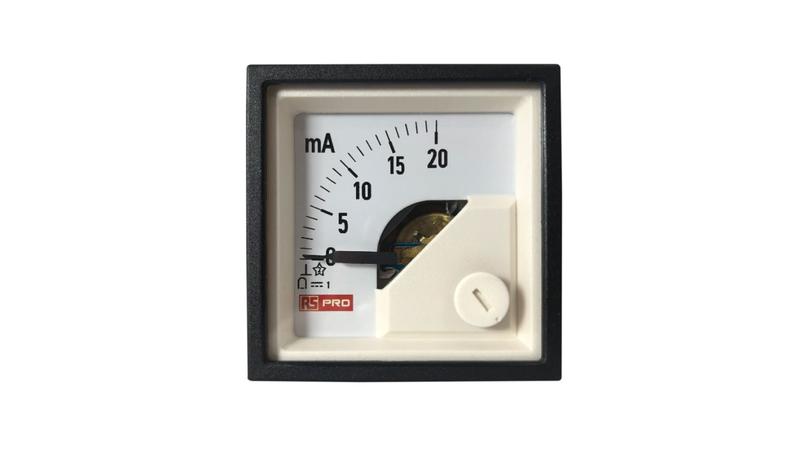

186-2475 RS PRO Analogue Panel Ammeter 20 (Input)mA DC, 45mm x 45mm, 1 % Moving Coil

RS PRO DC Analogue Panel Ammeter_x000D_ The RS PRO 45mm x 45mm cut-out DC analogue panel ammeter has a measurement range of 0mA to 20mA input. The DIN style panel meter comprises permanent magnet moving coil movements and indicates an average value. This movement consists of a magnet, aluminium coil suspended on pivots, hairspring, and jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case._x000D_ Features and Benefits_x000D_ • Operating temperature ranges between -10°C and 65°C_x000D_ • Accuracy: 1%_x000D_ • Pointer: Knife-edge type_x000D_ • Pointer deflection: 0° to 90°_x000D_ • DC Ammeter nominal range: 15uA to 100A_x000D_ • Shock resistance: 15g for pulse duration of 11 milliseconds_x000D_ • Moulded square case suitable for mounting control/switchgear panels in machinery consoles_x000D_ • Overload: 1.2 times nominal current (continuous)_x000D_ • Relative humidity: Less than 75% annual average (noncondensing)_x000D_ Certifications_x000D_ • UL 94 V-0 approved_x000D_ • 2014/30/EC (EMC directive)_x000D_ • 2014/35/EC (low voltage directive)_x000D_ • CE certified_x000D_ • IP52 rated_x000D_ • EN 61010_x000D_ • VDE 0100-410: 2018-10 approved_x000D_ • IEC 529_x000D_ • IEC 61010_x000D_ • ISO 20653: 2006-08
