186-2496 RS PRO Analogue Panel Ammeter DC, 68mm x 68mm, 1 % Moving Coil

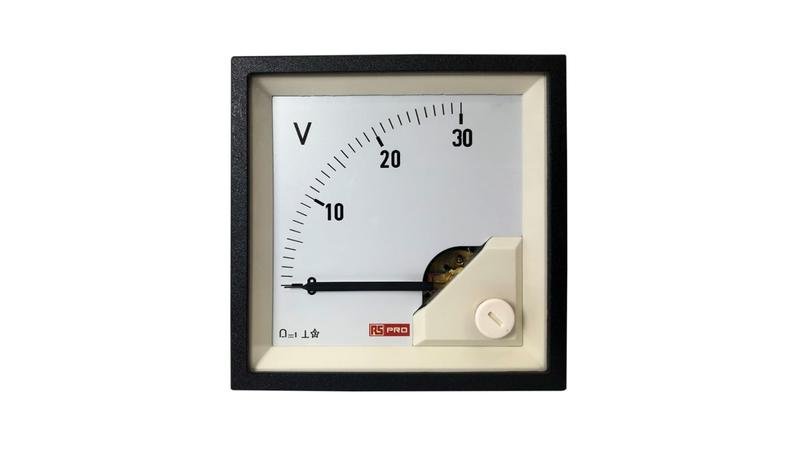

RS PRO DC Analogue Panel Voltmeter_x000D_ The RS PRO 68mm x 68mm cut-out DC analogue panel voltmeter has a measurement range of 0V to 30V input. The DIN 72 style panel meter comprises permanent magnet moving coil movements and indicates an average value. The moving coil movement consists of a magnet, an aluminium coil suspended on pivots, a hairspring, and a jewel mechanism. The scales are linear and calibrated down to zero. High currents are measured with separate shunts attached on the rear side of the meter. The meter is housed in a moulded polycarbonate case._x000D_ Features and Benefits_x000D_ • Operating temperature ranges between -10°C and 65°C_x000D_ • Storage temperature ranges between -25°C and 75°C_x000D_ • Accuracy: 1%_x000D_ • Pointer: Knife-edge type_x000D_ • Pointer deflection: 0° to 90°_x000D_ • DC voltmeter nominal range of use: 15mV to 600V_x000D_ • Shock resistance: 15g for pulse duration 11 milliseconds_x000D_ • Moulded square case suitable for mounting control/switchgear panels in machinery consoles_x000D_ • Overload: 1.2 times nominal voltage (continuous)_x000D_ • Relative humidity: Less than 75% annual average (noncondensing)_x000D_ Certifications_x000D_ • UL 94 V-0 approved_x000D_ • 2014/30/EC (EMC directive)_x000D_ • 2014/35/EC (low voltage directive)_x000D_ • CE certified_x000D_ • IP52 rated_x000D_ • EN 61010_x000D_ • VDE 0100-410: 2018-10 approved_x000D_ • IEC 529_x000D_ • IEC 61010_x000D_ • ISO 20653: 2006-08
