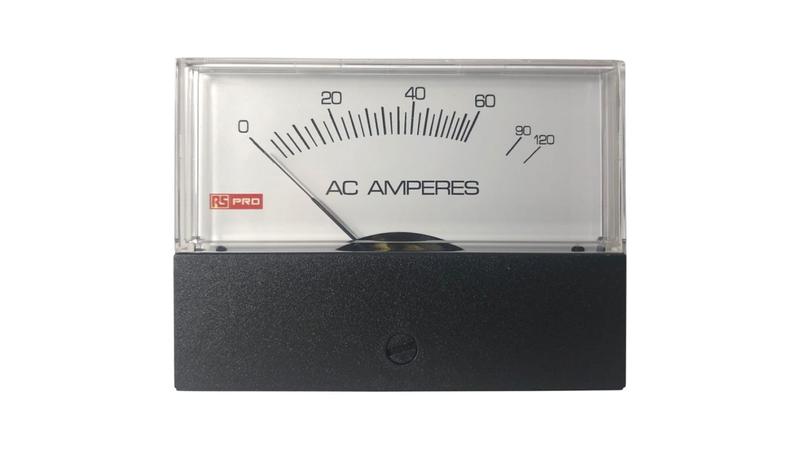

186-2518 RS PRO Analogue Panel Ammeter 10 (Input) A, 120 (Scale) A AC, 76mm x 74mm, ±1.5 %

RS PRO AC Analogue Panel Ammeter_x000D_ The RS PRO 2.5in 76mm x 74mm cut-out AC analogue panel ammeter has a measurement range from 0A to 10A input and 0A to 120A scale. The moving iron clapper type repulsion design consists of a pivot, a hairspring, and a jewel movement. The bottom jewel is oil-filled to provide damping while the top spring is for resilience. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility._x000D_ Features and Benefits_x000D_ • Operating temperature ranges between 0°C and 60°C_x000D_ • Accuracy: 1.5%_x000D_ • Pointer: Knife-edge type_x000D_ • Relative humidity: From 25% to 80%_x000D_ • Rear zero adjuster_x000D_ • High torque pivot_x000D_ Applications_x000D_ • Marine_x000D_ • Switchgear_x000D_ • Distribution systems_x000D_ • Control panels_x000D_ • Embedded generation, energy management, building management_x000D_ • Utility power monitoring_x000D_ • Motor monitoring_x000D_ Certifications_x000D_ • UL 94 V-0 approved_x000D_ • 2014/30/EC (EMC directive)_x000D_ • 2014/35/EC (low voltage directive)_x000D_ • CE certified_x000D_ • IP42 rated_x000D_ • EN 61010-1_x000D_ • VDE 0110-1: 2008-01 approved_x000D_ • IEC 529_x000D_ • IEC 1010_x000D_ • ISO 20653: 2006-08
