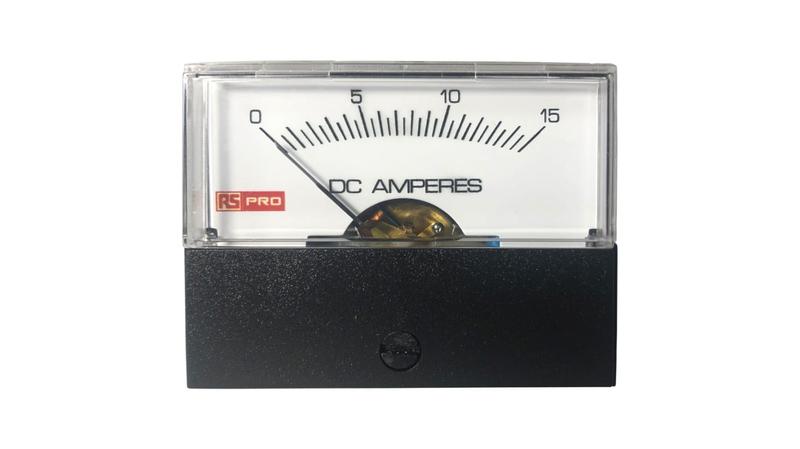

186-2538 RS PRO Analogue Panel Ammeter 15 (Input)A DC, 57mm x 44mm, ±1.5 % Moving Coil

RS PRO DC Analogue Panel Ammeter_x000D_ The RS PRO 1.5in 57mm x 44mm cut-out DC analogue panel ammeter has a measurement range of 0A to 15A input. The meter consists of a centre cored, self-shielding moving coil movement using pivots, hairsprings, and sprung jewels. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility._x000D_ Features and Benefits_x000D_ • Operating temperature ranges between 0°C and 60°C_x000D_ • Accuracy: 1.5%_x000D_ • Pointer: Knife-edge type_x000D_ • Relative humidity: 25% to 80%_x000D_ • Rear zero adjuster_x000D_ • High torque pivot and jewel movement_x000D_ Applications_x000D_ • Marine_x000D_ • Switchgear_x000D_ • Distribution systems_x000D_ • Control panels_x000D_ • Embedded generation, energy management, building management_x000D_ • Utility power monitoring_x000D_ • Motor monitoring_x000D_ Certifications_x000D_ • UL 94 V-0 approved_x000D_ • 2014/30/EC (EMC directive)_x000D_ • 2014/35/EC (low voltage directive)_x000D_ • CE certified_x000D_ • IP42 rated_x000D_ • EN 61010-1_x000D_ • VDE 0110-1: 2008-01 approved_x000D_ • IEC 529_x000D_ • IEC 1010_x000D_ • ISO 20653: 2006-08
