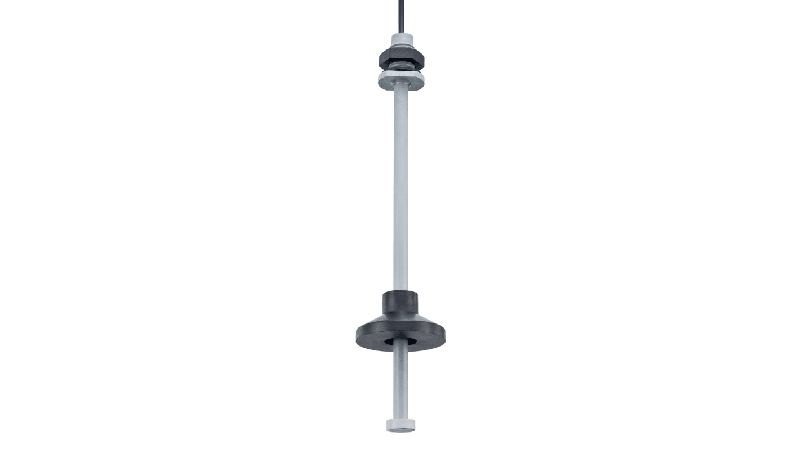

191-9465 RS PRO Vertical Buna (Float), Polyphenylene Sulphide (Stem) Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc

RS PRO Float Switch_x000D_ The RS PRO vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of Buna (Float), Polypropylene Sulphide (Stem) and a gasket material of nitrile. The use of large diameter Buna float is to allow the operation in SG as low as 0.45. The switch is capable of operating in as low as 6mm of water._x000D_ Features and Benefits_x000D_ • Operates in 10mm minimum liquid_x000D_ • Leadout: 100cm 2 core PVC 7/0.2_x000D_ • Length versions of 50mm and 200mm_x000D_ • Operating temperature ranges between -20°C and 75°C_x000D_ • Cable length : 1m_x000D_ Applications_x000D_ • Drip tanks_x000D_ • Hatch alarms_x000D_ • Other applications where highly sensitive liquid detection is required_x000D_ • Series of vertical float switches developed for applications where very low liquid levels need to be detected_x000D_ Certifications_x000D_ • ANSI/ESD S20.20: 2014_x000D_ • BS EN 61340-5-1: 2007
