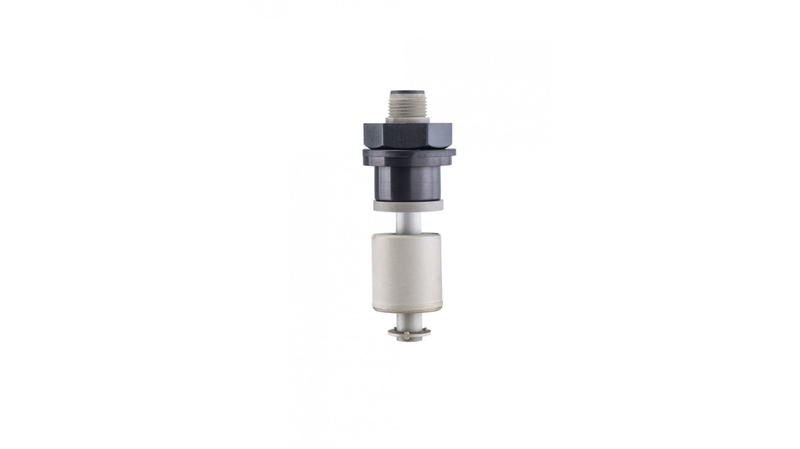

191-9468 RS PRO External, Vertical Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch_x000D_ The RS PRO external vertical mounting float switch has body material of Polyphenylene sulphide and gasket material of nitrile. It has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. These float switches have 25VA switching capacity. Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point._x000D_ Features and Benefits_x000D_ • M12 Connector_x000D_ • Operating temperature ranges between -20°C and 100°C_x000D_ Applications_x000D_ • Diesel generators_x000D_ • Hydraulic oil_x000D_ • Gearbox oil levels_x000D_ • Manufactured in a range of plastics to suit most commonly used liquids_x000D_ Certifications_x000D_ • ANSI/ESD S20.20: 2014_x000D_ • BS EN 61340-5-1: 2007
