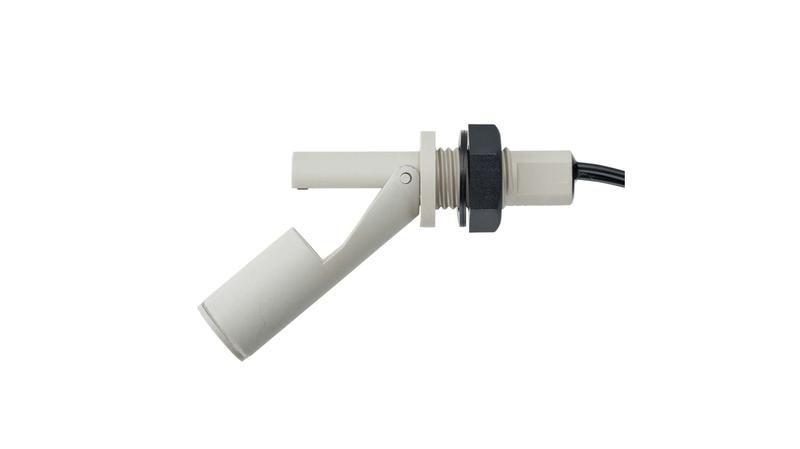

191-9469 RS PRO Horizontal Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Horizontal Float Switch, Polyphenylene Sulphide, NO/NC, Float, 1 m, 240 V, 120 V_x000D_ This horizontal-mounting float switch from RS PRO can be used to turn a circuit on or off when a liquid reaches a certain level in a tank. The compact design makes it easy to install in confined spaces._x000D_ The body is made from polyphenylene sulphide (PPS), a high-performance thermoplastic that can withstand more aggressive chemicals and temperatures between -20°C to and +120°C. The screw fixing is fitted with a nitrile rubber gasket to form an effective seal and comes with a 1 m lead for connection to the circuit. The switch action can be reversed by rotating the device through 180°._x000D_ Note that this type of switch needs access to the inside of the tank to be installed. Components such as this one are commonly used in applications including vending machines, commercial washing machines and evaporator units._x000D_ Features and Benefits_x000D_ • Body made of polyphenylene sulphide_x000D_ • Gasket made of nitrile rubber_x000D_ • Cable length of 1 m_x000D_ • Current rating of 600 mA_x000D_ • Float device type_x000D_ • Maximum AC voltage of 240 V_x000D_ • Maximum current of 600 mA_x000D_ • Maximum DC voltage of 120 V_x000D_ • Operating temperature range of -10°C to +120°C_x000D_ • Horizontal mounting type_x000D_ • NO/NC (normally-open, normally-closed) switch output
