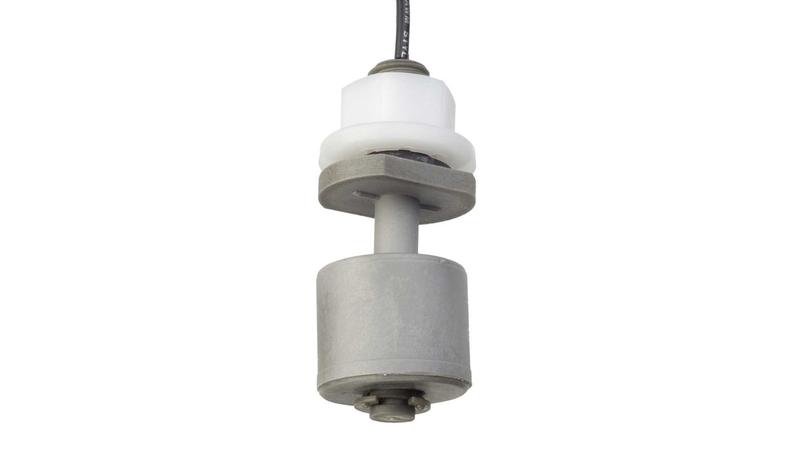

191-9471 RS PRO Vertical Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Vertical Float Switch, Polyphenylene Sulphide, NO/NC, Float, 1 m, 240 V, 120 V_x000D_ This vertical-mounting float switch from RS PRO is handy when you need to monitor the level of liquid in a tank. You can also use it to turn a circuit on or off when it reaches a preset level. You can reverse the switch action by removing, inverting and then refitting the float._x000D_ The switch's compact design makes it easy to fit in confined spaces. It's made from polyphenylene sulphide, which is resistant to aggressive chemicals and can has a high melting point, meaning this switch can withstand temperatures up to +120°C. It offers a highly effective seal thanks to the nitrile rubber gasket._x000D_ You can couple this float switch to an electrical circuit with an M12 4-pin connector. Units of this kind are commonly found in applications including vending machines, printing systems and chemical dosing equipment._x000D_ Features and Benefits_x000D_ • Body made of polyphenylene sulphide_x000D_ • Gasket made of nitrile rubber_x000D_ • Cable length of 1 m_x000D_ • Current rating of 600 mA_x000D_ • Float device type_x000D_ • Maximum AC voltage of 240 V_x000D_ • Maximum current of 600 mA_x000D_ • Maximum DC voltage of 120 V_x000D_ • Operating temperature range of -10°C to +120°C_x000D_ • Vertical-mounting type_x000D_ • NO/NC (normally-open, normally-closed) switch output
