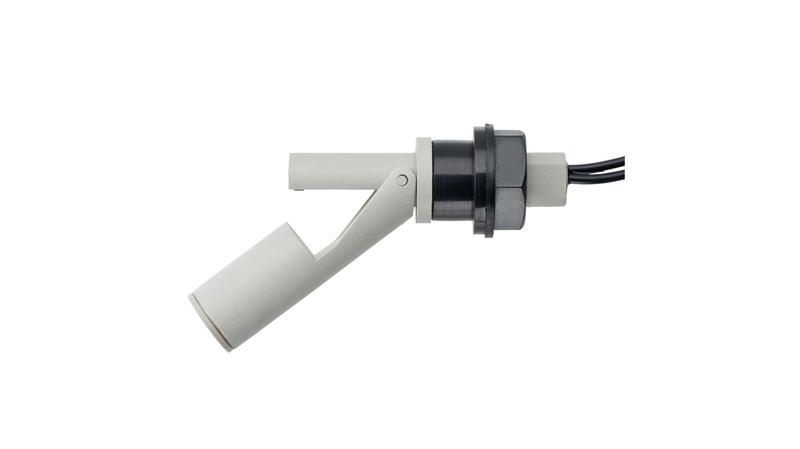

191-9473 RS PRO Horizontal Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Horizontal Float Switch, Polyphenylene Sulphide, NO/NC, Float, 1 m, 240 V, 120 V_x000D_ Use this horizontal float switch from RS PRO when you need to monitor the level of liquid in a tank or turn a circuit on or off when it reaches a pre-set level. It's designed to be fitted through a tank wall from the outside, meaning you can install it even when you don't have access to the inside of the tank._x000D_ The body of the switch is made from polyphenylene sulphide, which means the switch both stands up to aggressive chemicals and can be used at temperatures right up to +120°C. A nitrile compression seal guards against leakage. You can connect the switch to the circuit using the 1 m flying lead supplied._x000D_ The switch meets (US) ANSI/ESD S20.20:2014 and (UK) BS EN 61340-5-1:2007 Electrostatic Control Standards on protection from electrostatic discharge. Switches of this kind are commonly found in vending machines, commercial dishwashers and auxiliary tanks on vehicles._x000D_ Features and Benefits_x000D_ • Body made of polyphenylene sulphide_x000D_ • Gasket made of nitrile rubber_x000D_ • Cable length of 1 m_x000D_ • Float device type_x000D_ • Current rating of 600 mA_x000D_ • Maximum AC voltage of 240 V_x000D_ • Maximum current of 600 mA_x000D_ • Maximum DC voltage of 120 V_x000D_ • Operating temperature range of -10°C to +120°C_x000D_ • Horizontal mounting type_x000D_ • NO/NC (normally-open, normally-closed) switch output
