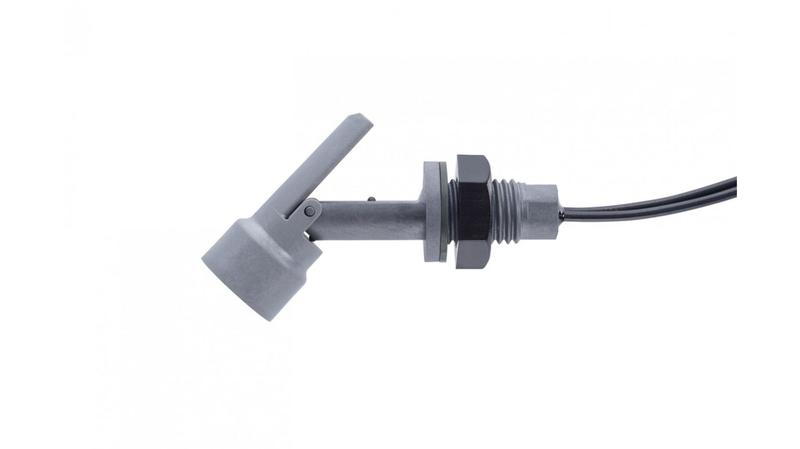

191-9478 RS PRO Threaded Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Size_x000D_ The RS PRO thread mounting float size has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of polypropylene sulphide and has a gasket material of nitrile. This device is particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids. Mounting of this series requires access to the inside of the tank. It is manufactured in a variety of materials with a choice of gasket materials, to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180°._x000D_ Features and Benefits_x000D_ • Compact design_x000D_ • Very low level sensing_x000D_ • Suitable for low specific gravity liquids_x000D_ • Cable length: 1m_x000D_ • Operating temperature ranges between -10°C and 120°C_x000D_ • Leadout: 100cm PVC 16/0.2_x000D_ Applications_x000D_ • Vending machines_x000D_ • Commercial washing machines_x000D_ • Evaporator units_x000D_ Certifications_x000D_ • ANSI/ESD S20.20: 2014_x000D_ • BS EN 61340-5-1: 2007
