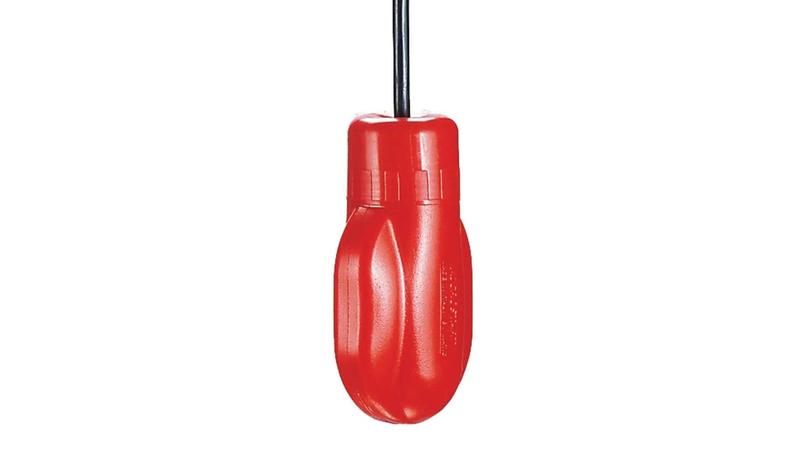

191-9493 RS PRO External HDPE Float Switch, Float, 5m Cable, NC, 250V ac Max, 24V dc Max

RS PRO Float Switch_x000D_ The RS PRO external mounting float switch has an output of NC with a maximum switching voltage of 250VAC and switching current of 0.6A. It is made up of HDPE. The switching element is a micro switch, activated by a moving stainless steel ball and having an electrical life of 200,000 operations. The Non-hygroscopic closed-cell expanded polyurethane is injected around the switch housing within the outer casing, hermetically sealing the unit. It is capable of working down to 100 metres depth in water. This series of cable end float switches are designed for controlling levels in large tanks, cisterns or reservoirs and can be directly installed on submersible pumps. It has 10bar maximum pressure._x000D_ Features and Benefits_x000D_ • Use in non-turbulent fluids_x000D_ • Cable length: 5m_x000D_ • Operating temperature ranges between 0°C and 45°C_x000D_ Applications_x000D_ • Larger tanks_x000D_ • Cisterns and reservoir_x000D_ Certifications_x000D_ • ANSI/ESD S20.20: 2014_x000D_ • BS EN 61340-5-1: 2007
