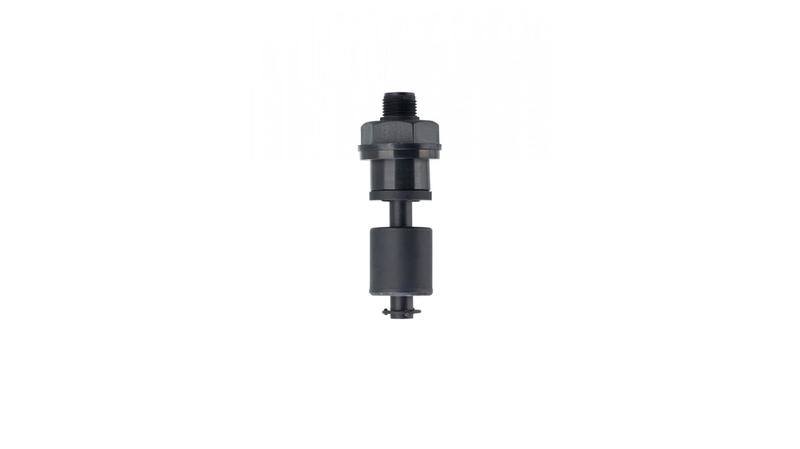

191-9496 RS PRO External, Vertical Nylon Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max

RS PRO Float Switch_x000D_ The RS PRO external vertical mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of nylon and has gasket material of nitrile. The switch action may be reversed by removing the float, inverting it, then refitting to the stem. This float switch has 25VA switching capacity Mounting is in the top or bottom of a tank via a compression seal, so does not require access to the inside of the tank for fitting a compact vertically mounted design with a single switch point._x000D_ Features and Benefits_x000D_ • External mount via compression seal_x000D_ • Compact design with small diameter float_x000D_ • M12 connector_x000D_ • Operating temperature ranges between -20°C and 75°C_x000D_ • Switch Output: NO/NC_x000D_ Applications_x000D_ • Diesel generators_x000D_ • Hydraulic oil_x000D_ • Gearbox oil levels_x000D_ • Manufactured in a range of plastics to suit most commonly used liquids_x000D_ Certifications_x000D_ • ANSI/ESD S20.20: 2014_x000D_ • BS EN 61340-5-1: 2007
