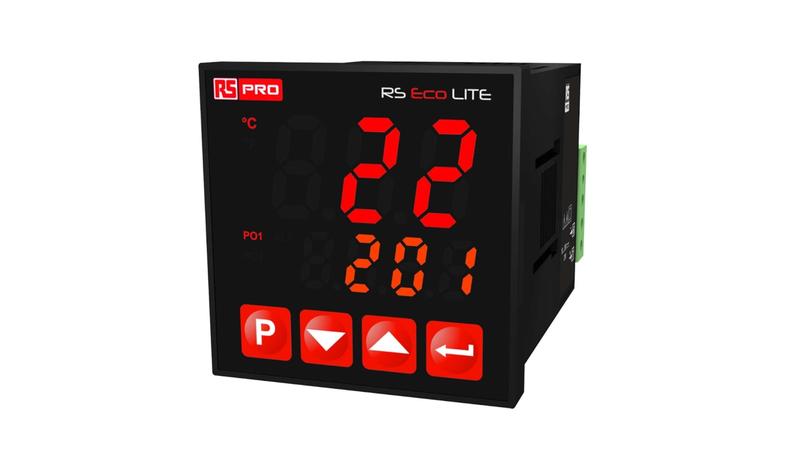

198-1173 RS PRO Panel Mount On/Off Temperature Controller, 48 x 48mm, 2 Output Relay, 10 → 30 V dc Supply Voltage

RS PRO Digital On/Off Temperature Controller 10-30V dc_x000D_ RS PRO digital On/Off temperature controllers are ideal temperature control solutions for applications that require temperatures to be maintained. The compact device can be easily installed to a DIN rail, providing a high quality and reliable temperature control system that is easy to use. The RS PRO temperature controller features heating and cooling functions, offering versatility suitable for a range of applications. The adjustable temperature offset and on/off feature of the temperature controller ensures the device will switch on or off automatically to reach the setpoint temperature or prevent it from exceeding._x000D_ Features and Benefits_x000D_ 3 Digits process (PV) and 4 Digits set (SV) display_x000D_ Low power consumption, energy saving and environmentally friendly_x000D_ TC Process Input: J,K,R,S,T Input Types_x000D_ RTD Process Input selectable by parameter_x000D_ ON/OFF, control form_x000D_ Selectable heating and cooling function_x000D_ Operating type selection with hysteresis_x000D_ Adjustment of temperature offset value_x000D_ Minimum pulling time adjustment for control outputs_x000D_ Password protection for programming mode_x000D_ Applications_x000D_ On/Off temperature controllers are designed to control and maintain temperatures in appliances by turning on or off, depending on the users required pre-set temperature. If the temperature drops below the setpoint, the controller will turn on and increase the temperature until it is met. Once the desired temperature is reached, the device output switches off automatically. Temperature controllers are perfect for applications that require temperature control solutions, especially those whereby the temperature increases slowly, and are commonly used in areas such as:_x000D_ HVAC systems_x000D_ Ovens_x000D_ Incubators_x000D_ Automotive_x000D_ Storage solutions_x000D_ FAQs_x000D_ Why use an On/Off Temperature Controller?_x000D_ Used for monitoring purposes in heating environments, on-off temperature controllers prevent rapid increases in temperature that could cause damage. These controllers are often used where there isn't a need for precision temperature control, but where a system is unable to handle continuous interruptions. A typical example of an on-off controller is a thermostat in a system, if the temperature drops below the pre-set level the system is switched on. They can protect against a system over-heating or over-cooling and have an 'on' 'off' option with no middle state._x000D_ Does this display Celsius or Fahrenheit?_x000D_ This temperature controller displays temperatures in Celsius._x000D_ Can it be password protected?_x000D_ Yes this controller features password protection._x000D_ Can this control heating and cooling?_x000D_ The RS PRO temperature controller is suitable for heating and cooling control.
