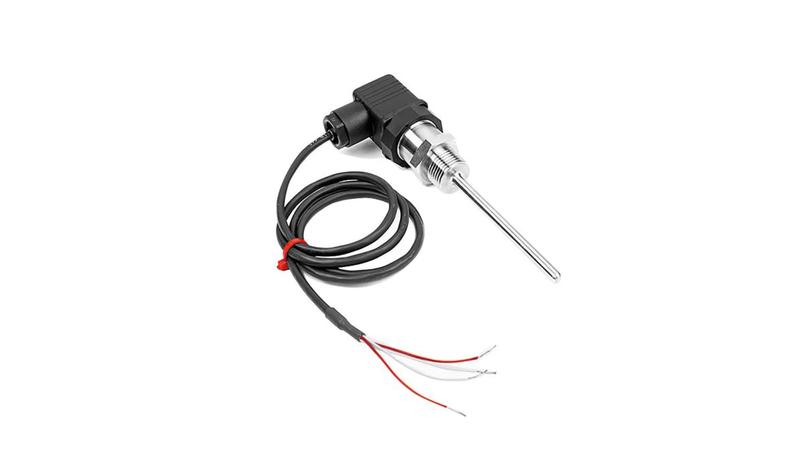

200-0595 RS PRO PT100 RTD Sensor, 6mm Dia, 100mm Long, 3 Wire, G1/2, +250°C Max

RS PRO PRT PT100 Probe with Hirschmann Connector_x000D_ Introducing the range of RS PRO high quality Platinum Resistance Thermometer (PRT) PT100 Probes with Hirschmann Connector, ideal as a heavy-duty and high-accuracy solution for temperature measurement. The probe and 1m PVC cable has a robust construction, suitable for use in harsh environments like industrial or commercial settings, whilst ensuring highly accurate and reliable measurements, while being versatile enough to use in a wide range of applications._x000D_ Features and Benefits:_x000D_ This range of RS PRO PRT PT100 probes are ideal for high-accuracy and reliable temperature measurements in a wide range of environments_x000D_ Each sensor has a wide operating temperature range: -50 °C to +250°C with a 6mm probe diameter_x000D_ The probe is made from rigid 316 corrosion resistant stainless steel for protection of the sensing element_x000D_ Designed to meet IP65, providing protection from total dust ingress and limited ingress from low pressure water jets from any direction_x000D_ Conforms to IEC60751 standards_x000D_ Class A, 3 wire connection with a Hirschmann type connector to DIN EN 175 301-803-A_x000D_ A range of probe lengths available_x000D_ Applications:_x000D_ PRT sensor probes are known for their robust design meaning they are ideal for use in many general purpose industrial and commercial applications where accurate temperature measurement and monitoring is key and essential in ensuring equipment is functioning correctly. These sensor probes are often used in the following areas:_x000D_ Air conditioning and refrigeration_x000D_ Chemical industry_x000D_ Plastics processing_x000D_ Stoves and grills_x000D_ Air, gas and liquid temperature measurement_x000D_ Exhaust gas temperature measurement_x000D_ Food processing_x000D_ Laboratories_x000D_ What other probes are included in this range?_x000D_ 200-0593 50 mm Probe Length_x000D_ 200-0594 75 mm Probe Length_x000D_ 200-0595 100 mm Probe Length_x000D_ 200-0596 150 mm Probe Length_x000D_ 200-0597 200 mm Probe Length_x000D_ 200-0598 300 mm Probe Length_x000D_ What is a PT100 Probe?_x000D_ A PT100 probe is the most rugged form of RTD. The PT100 sensor element is mounted inside a metal sheath or probe which protects it from being damaged by the surrounding environment when it is inserted into the process to be measured. The other end of the probe is terminated by an insulated lead comprising of 4 wire tails which are connected to the temperature measuring equipment._x000D_ How Does a PRT Temperature Sensor Work?_x000D_ The PRT temperature sensor works by placing the sensor element (or process end) into the equipment or process that requires temperature measurement. As the temperature of the platinum resistance thermometer increases its resistance to the flow of electricity increases. For every increase per degree of temperature the electrical resistance also changes by a set ratio, this is called the temperature coefficient. For platinum, this ratio is .00385 ohm/ohm/°C which means for a Pt100 with a 100-ohm resistance the increase in resistance per degree of temperature would be 0.385 ohms. The total resistance reading can, therefore, be measured and converted into temperature._x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
