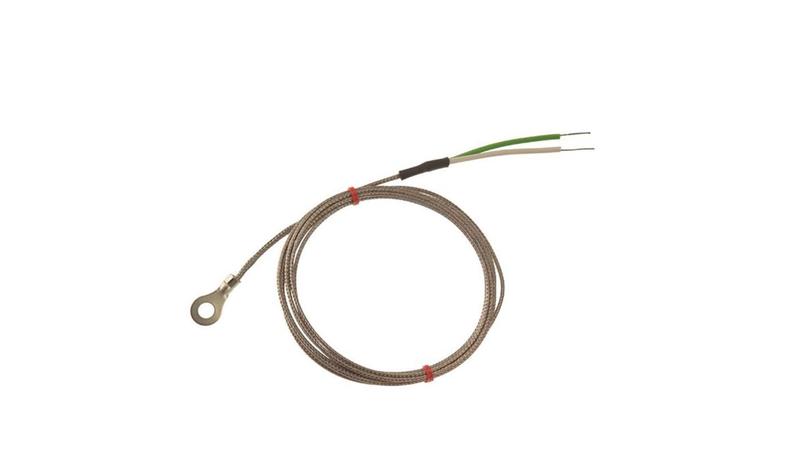

200-0616 RS PRO Type K Thermocouple 10mm Diameter → +350°C

RS PRO Grounded Junction Washer Thermocouple, Type K_x000D_ Introducing the range of RS PRO Brake Pad Thermocouples, designed for low profile surface temperature measurement. They have been designed with a grounded sensing junction and a tin-plated copper washer for fast and accurate response and measurement, as well as include a 2 m fibreglass insulated, stainless steel overbraid cable that is attached to the stainless-steel thermocouple tip using a high temperature, ceramic-based sealant for optimum reliability._x000D_ Features and Benefits:_x000D_ This range of RS PRO Washer Temperature Sensors have been designed for monitoring surface temperatures up to +350°C and to deliver high performance temperature measurements reliably and consistently_x000D_ The thermocouple has a grounded junction and a 2 m fibreglass insulated flat pair of cables with a stainless steel overbraid for added reliability_x000D_ Available as Type K and J Thermocouples_x000D_ All sensors in the range are available with 3.5 mm, 4 mm, 5 mm, 8 mm and 10 mm washer diameters_x000D_ Applications:_x000D_ Washer Thermocouple sensors are ideally suited for measuring surface temperatures, especially in applications where low-profile methods of temperature detection is required. They are most commonly used in:_x000D_ Research and development_x000D_ Motorsports testing_x000D_ Manufacturing, engineering and production environments_x000D_ What other thermocouples are included in this range?_x000D_ 200-0605 3.5mm Washer Thermocouple SSOB Type J_x000D_ 200-0606 3.5mm Washer Thermocouple SSOB Type K_x000D_ 200-0607 4mm Washer Thermocouple SSOB Type J_x000D_ 200-0609 4mm Washer Thermocouple SSOB Type K_x000D_ 200-0610 5mm Washer Thermocouple SSOB Type J_x000D_ 200-0611 5mm Washer Thermocouple SSOB Type K_x000D_ 200-0612 8mm Washer Thermocouple SSOB Type J_x000D_ 200-0613 8mm Washer Thermocouple SSOB Type K_x000D_ 200-0615 10mm Washer Thermocouple SSOB Type J_x000D_ 200-0616 10mm Washer Thermocouple SSOB Type K_x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot junction, also known as the measuring junction, is connected to the body whose temperature is going to be measured, while the cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect._x000D_ What is a Surface Thermocouple?_x000D_ This thermocouple is designed for measuring the temperature on a surface. Most thermocouples have a sensing tip where there ends of the thermocouple wires are encased in sheaths or protection tubes which do not allow for measuring the temperature of a surface area. In surface temperature sensing thermocouples, the exposed welded wire junction is housed in a magnet, adhesive patch, washer or bolt which provides a true surface contact. These thermocouple sensors are easy to install and use, the washer at the end of the sensor is simply positioned under a bolt or a rivet_x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards_x000D_ they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
