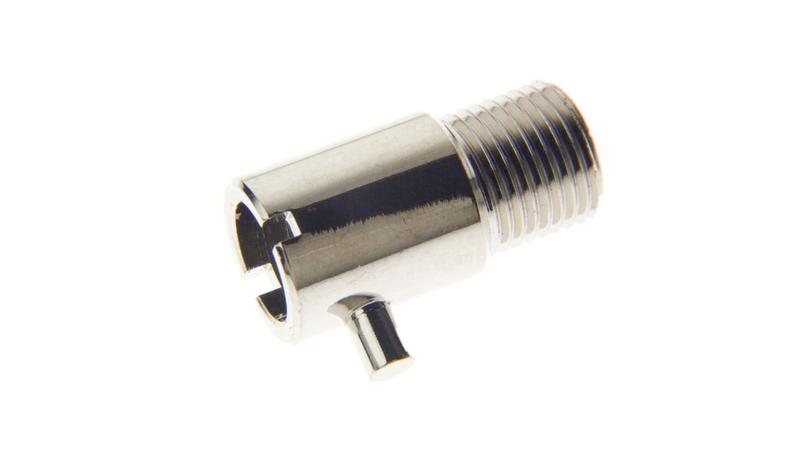

200-0617 RS PRO Bayonet Adapter for Use with Bayonet Cap Style Thermocouples, Single Pair

RS PRO Thermocouple Bayonet Adaptor_x000D_ From RS PRO a threaded bayonet adaptor for use with bayonet style thermocouples or temperature probes. This thermocouple adaptor consists of a male thread for process mounting and a bayonet style pin for attaching to the mating cap. The thermocouple is simply inserted and locked into the adapter which holds the sensing tip firmly in place in the process or against the surface it is measuring._x000D_ Features and Benefits_x000D_ • Nickel plated brass finish helping to protect the adaptor from corrosion_x000D_ • Single pin bayonet fitting for an easy but reliable fit for your connectors_x000D_ • 11mm diameter body, suitable for most widely used 11.5mm inside diameter bayonet caps_x000D_ • Available in a variety of lengths to suit whatever size you need_x000D_ • 7.8mm internal bore_x000D_ • Bayonet assembly and adaptor also available with grub screw type to secure to the selected position on probe_x000D_ Applications_x000D_ Bayonet probe thermocouples are designed for direct installation into the process, and this is where bayonet adaptors will fit. The bayonet fitting makes them suited for applications where the thermocouple sensor tip is fitted directly into a drilled hole or recess in machinery. Typical applications include the plastics and rubber industry where they are used in extrusion and moulding machinery._x000D_ What is an Adjustable Bayonet Probe_x000D_ The probes of these thermocouple sensors have an adjustable screw-threaded spring with a slotted bayonet fixing cap. The bayonet cap screws along this spring and allows the immersion length of the thermocouple probe to be adjusted. Once in place the bayonet cap is secured to a bayonet adapter allowing the thermocouple to be firmly held in place within the recess. The advantages of this method of fixing are;_x000D_ Immersion depth can be adjusted easily_x000D_ Secure connection within machine recess_x000D_ Positive pressure at the thermocouple tip and full immersion in process_x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
