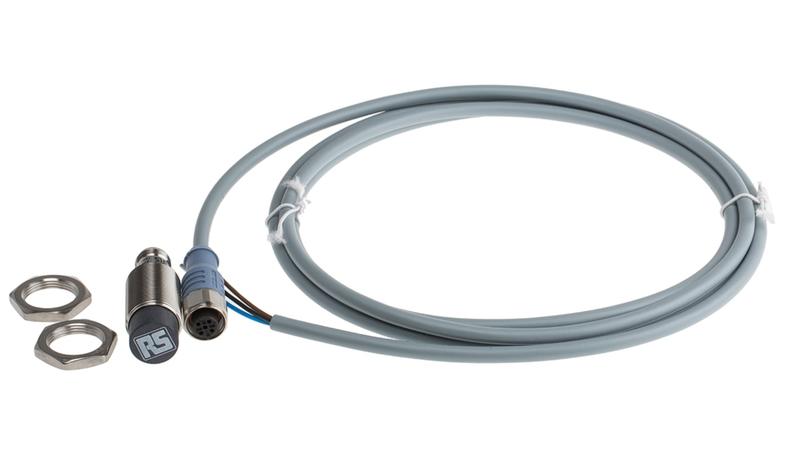

208-235 RS PRO Inductive Barrel-Style Proximity Sensor, M18 x 1, 12 mm Detection, PNP Output, 10 → 30 V dc, IP68

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 12 mm Detection, M18 x 1, IP68, M12 4 Pin Terminal_x000D_ Use this RS PRO inductive proximity sensor to detect delicate metal objects that could be damaged if touched. It's used to detect objects without physical contact and within a defined range, such as when sorting items on a factory production line._x000D_ The sensor's stainless steel body means it's tough and corrosion-resistant, so it can withstand installation in demanding industrial environments. Its IP68 (Ingress Protection) rating makes it completely dust-tight and water-resistant. It also offers high thermal resistance for use in hot settings. This versatile sensor can detect both ferrous and non-ferrous metals and is suitable for use in food processing applications._x000D_ Features and Benefits_x000D_ Barrel body_x000D_ Detection range of 12 mm_x000D_ Stainless steel housing_x000D_ Ingress Protection (IP) rating of IP68_x000D_ Length of 52 mm_x000D_ Maximum voltage of 30 V DC_x000D_ Operating temperature range of -30ºC to +85ºC_x000D_ Maximum switching frequency of 2 kHz_x000D_ Non-flush mounting type_x000D_ PNP (positive, negative, positive) output type_x000D_ Reverse polarity protection_x000D_ Inductive sensor technology_x000D_ Partial shielding_x000D_ Short circuit overload protection_x000D_ Supply voltage of 10 to 30 V DC_x000D_ Switching current of 200 mA (milliamperes)_x000D_ M12 four-pin terminal type_x000D_ Thread size of M18 x 1_x000D_ Applications_x000D_ These Proximity Sensors are commonly used for the following magnetic output applications:_x000D_ Forklift Truck_x000D_ Food industry_x000D_ Beverage industry_x000D_ Robotics_x000D_ Packing and materials handling_x000D_ For monitoring components positions within hydraulic machines_x000D_ Frequently asked questions_x000D_ How Inductive Sensors work?_x000D_ Inductive sensors contain a coil and an oscillator that create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed._x000D_ The operating distance varies between sensors and can be affected by the target, the shape of what is being detected and what environment or material you are using the sensor in. These are all things to bear in mind when choosing the right sensor for your application._x000D_ Why RS PRO?_x000D_ RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.
