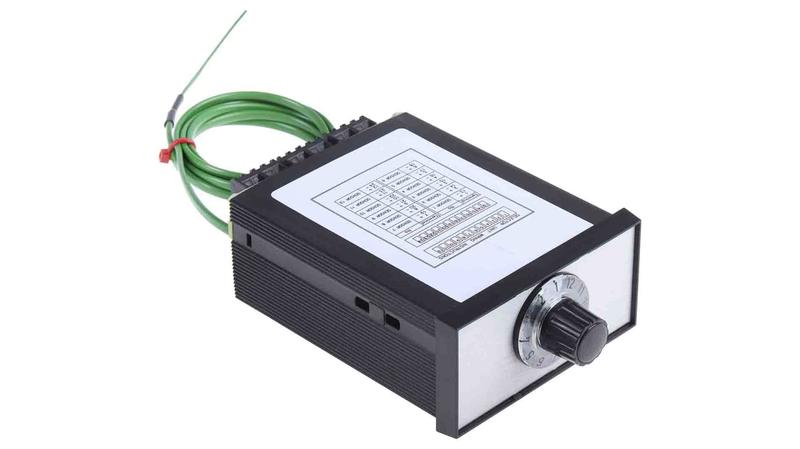

219-4602 RS PRO Thermocouple Selector Switch for Use with Thermocouple, RoHS Compliant Standard

RS PRO Thermocouple Selector Switch_x000D_ From RS PRO a 12-way panel mount type K thermocuple selector switch, also known as a thermocouple switch box with a simple to use multipole rotary selector switch. This thermocouple selector switch provides an effective and reliable way of allowing up to 12 type K-type thermocouple, probe or RTD signals to be switched to a common display or control unit. The unit is internally wired with thermocouple compensating cable and is compatible with all type K thermocouples. A 1 metre type K fixed lead is supplied with this unit which is connected to external equipment._x000D_ How Does a Thermocouple Selector Switch Work ?_x000D_ The 12 rear inputs or channels allow readings from multiple K-type temperature sensor inputs to be monitored on a single K output. The 12 inputs are connected to individual RTDs or thermocouples and the single output is connected via a cable to an external temperature measuring device such as a digital thermometer. To select the sensor you want to measure simply turn the switch on the front of the panel which is clearly marked with the channel number. The selected channel will then be directed to the output socket to external measuring equipment._x000D_ Features and Benefits_x000D_ • DIN panel mount case with 45 x 92mm panel cut out_x000D_ • Robust aluminum construction_x000D_ • 12 Type K inputs and 1 type K output_x000D_ • Input connections on barrier terminal strip_x000D_ • Clearly marked rotary switch for simple selection of input_x000D_ • Internally wired with thermocouple compensating cable_x000D_ • Compatible with all type K thermocouple_x000D_ • Supplied with 1 metre type K fixed lead
