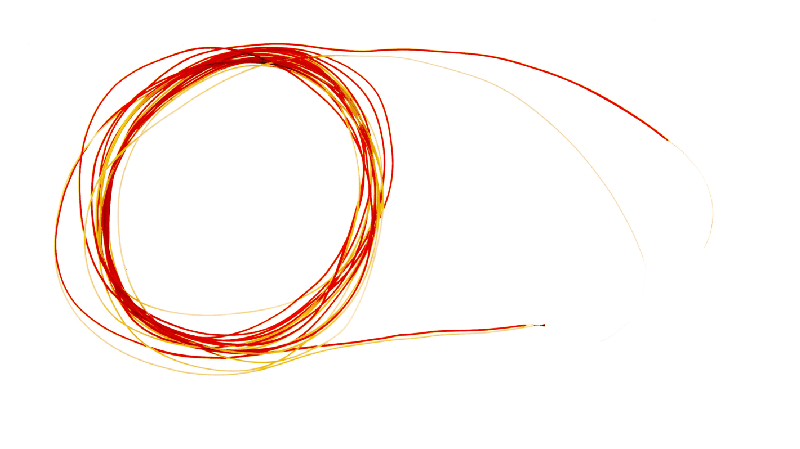

220-9490 RS PRO Type K Thermocouple 2m Length, 1/0.076mm Diameter, -75°C → +260°C

RS PRO ANSI Type K Fine Gauge Exposed Welded Tip Thermocouples_x000D_ Introducing the range of RS PRO type K fine gauge wire thermocouple temperature sensors conforming to ANSI standards. These thermocouple temperature sensors feature a welded tip exposed junction for a fast response time. The lead consists of 0.0076 mm conductors with durable Teflon PFA insulation colour coded to ANSI specifications._x000D_ Features and Benefits:_x000D_ Welded, exposed junction for fast response times_x000D_ Durable PFA insulated leads for resistance to oils, acid, fluids and good mechanical strength and flexibility_x000D_ Conforms to ANSI standards_x000D_ Temperature range from -75 to +260°C_x000D_ Applications:_x000D_ These Type K fine wire thermocouple temperature sensors are ideal for test and development applications including:_x000D_ Test and measurement_x000D_ Temperature mapping_x000D_ OEM applications_x000D_ How does a Thermocouple Work?_x000D_ A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables which is a process also known as the Seebeck Effect._x000D_ What is a Welded Exposed Junction?_x000D_ An exposed junction is where the thermocouple wires are welded together but not surrounded by the outer sheath. The ends of the wire are directly inserted into the process. This means the thermocouple has a high sensitivity and response time. Welded exposed junctions are more prone to corrosion and are recommended for measuring flowing or static non-corrosive gas temperatures_x000D_ Why RS PRO?_x000D_ RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
